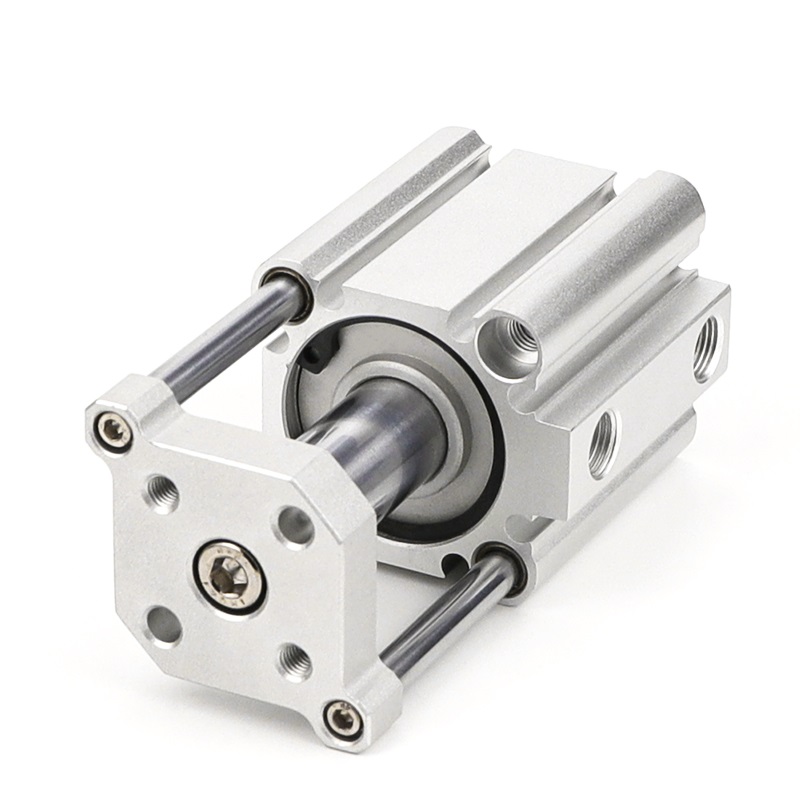

Introducing, the TACQ Thin Type Pneumatic Air Cylinder from CHYF - the perfect solution for all your air cylinder needs. This versatile and reliable cylinder is available in various sizes, including TACQ32, TACQ35, TACQ40, TACQ50, TACQ75 and TACQ100-S.
Built with precision and high-quality materials, the TACQ Thin Type Pneumatic Air Cylinder is designed to provide efficient and consistent performance in a wide range of industrial applications. Whether you need a compact and lightweight cylinder for a tight space or a powerful cylinder for heavy-duty tasks, this product has you covered.
The TACQ Thin Type Pneumatic Air Cylinder features a sleek and durable design that ensures smooth and reliable operation. With its simple installation process and user-friendly interface, you can quickly integrate this cylinder into your existing systems without any hassle.
Equipped with advanced pneumatic technology, the TACQ Thin Type Air Cylinder delivers fast and precise movement with minimal air consumption. This means you can save energy and reduce operating costs while achieving maximum productivity.
With a variety of stroke lengths available, you can choose the perfect size for your specific needs. Whether you require a shorter stroke for precise positioning or a longer stroke for extended reach, the TACQ Thin Type Pneumatic Air Cylinder offers flexibility and customization options.
CHYF is known for its commitment to quality and innovation, and the TACQ Thin Type Pneumatic Air Cylinder is no exception. Backed by years of expertise and industry-leading technology, this product is built to last and deliver exceptional performance in any environment.
The TACQ Thin Type Pneumatic Air Cylinder from CHYF is a top-of-the-line product that offers reliable and efficient operation for a wide range of industrial applications. With its durable construction, advanced technology, and customizable options, this cylinder is the perfect choice for all your pneumatic cylinder needs. Invest in the TACQ Thin Type Pneumatic Air Cylinder today and experience the difference for yourself

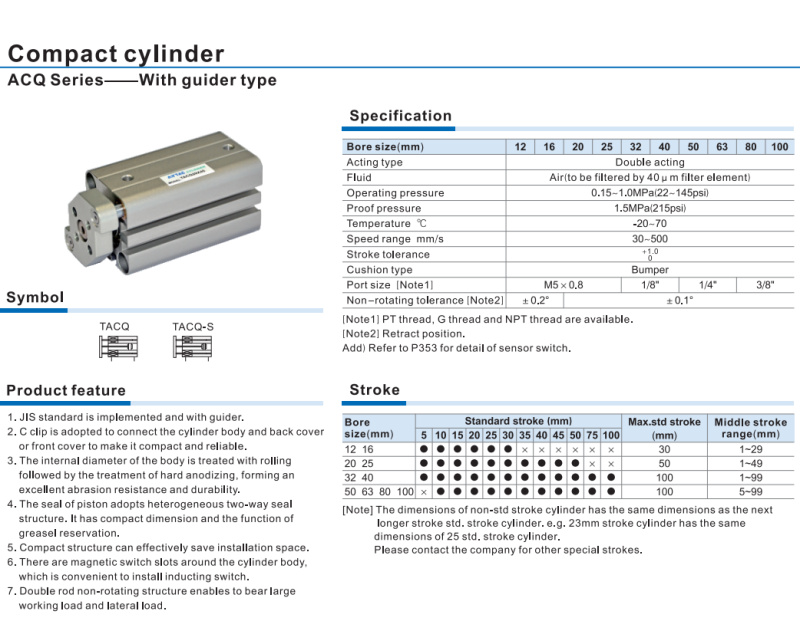

Working fluid |
Air |
|||||||||||||||||||
Action type |
Double action Single Rod |
|||||||||||||||||||
Proof pressure |
1.5MPa - 15.3kgf/cm2 |
|||||||||||||||||||
Minmum Operating Pressure |
0.12MPa |
0.1MPa |
||||||||||||||||||
Maximum Operating Pressure |
1.0MPa - 10.2kgf/cm2 |
|||||||||||||||||||
Cushion |
rubber bumper on both ends |
|||||||||||||||||||
Stroke Length Tolerance |
+ 1.0mm² 0 |
|||||||||||||||||||
Lubrication |
No need |
|||||||||||||||||||
Mounting |
Through-hole |
|||||||||||||||||||
1. Small size, light
2. Strong resistance to lateral load
3. High torque resistance
4. High precision without rotation
5. Convenient installation
