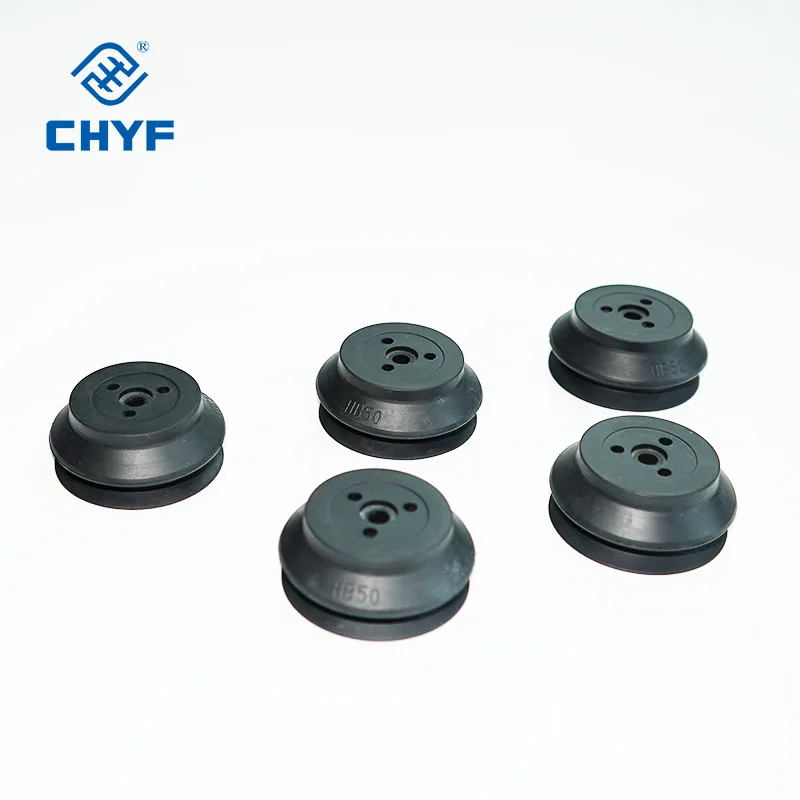

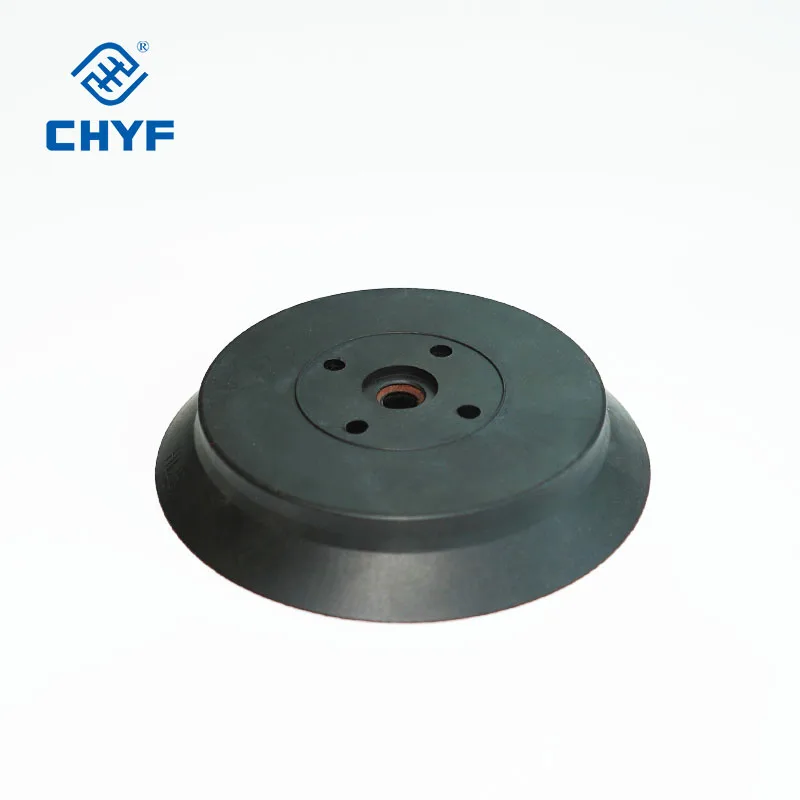

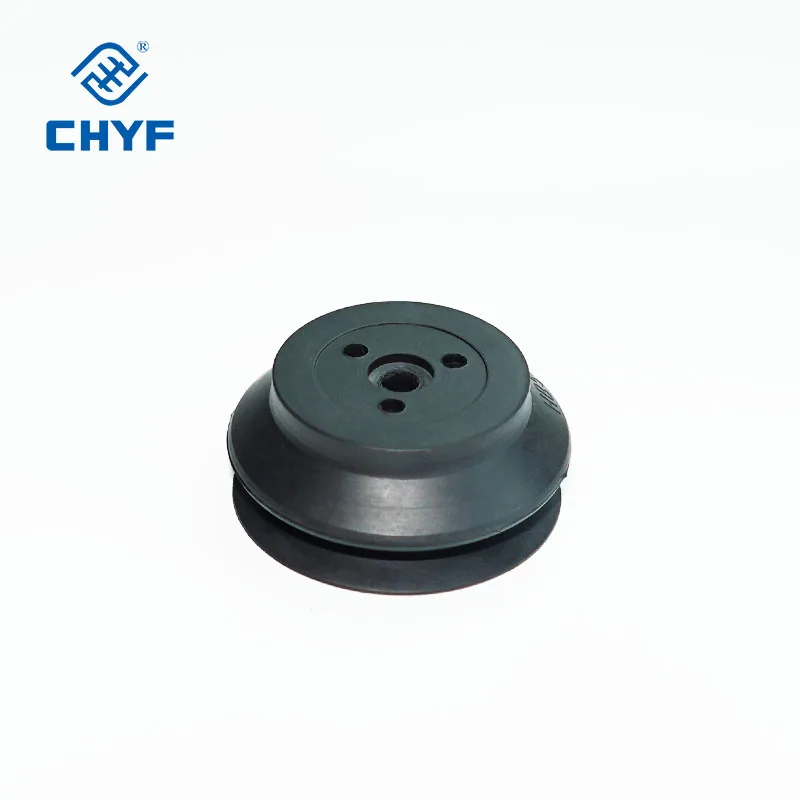

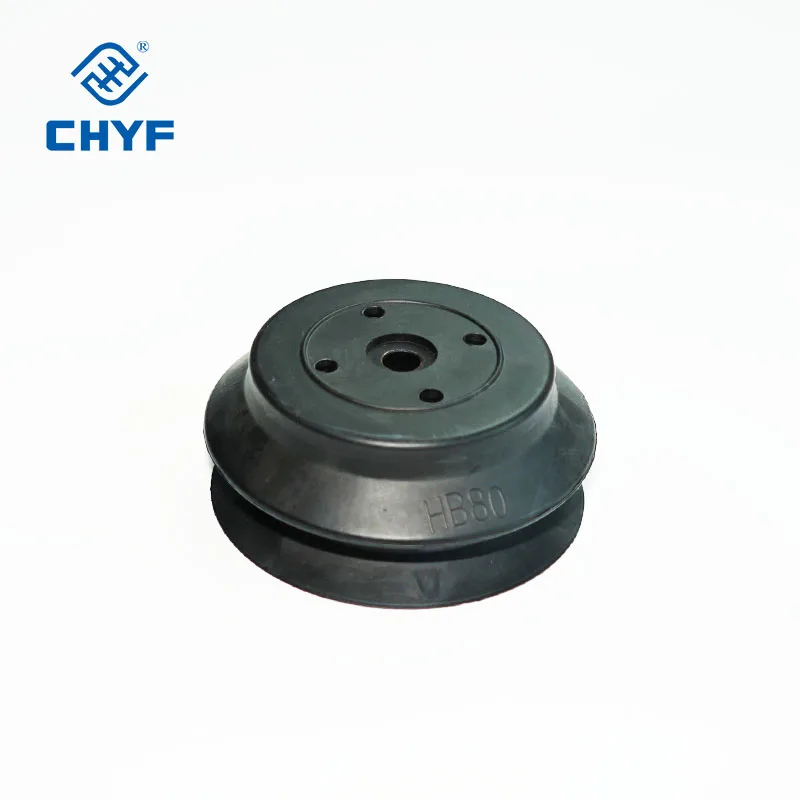

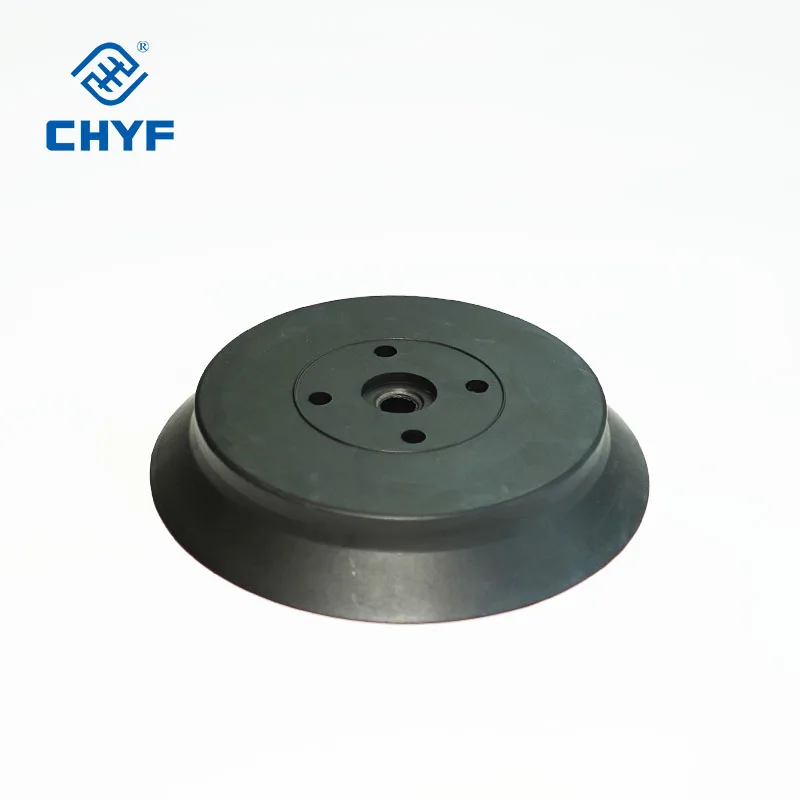

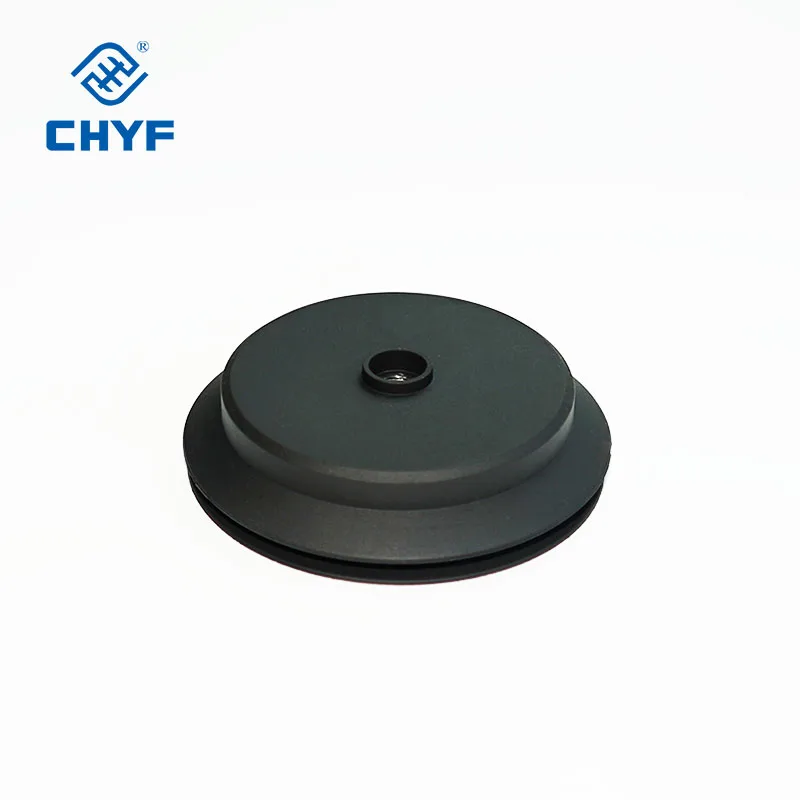

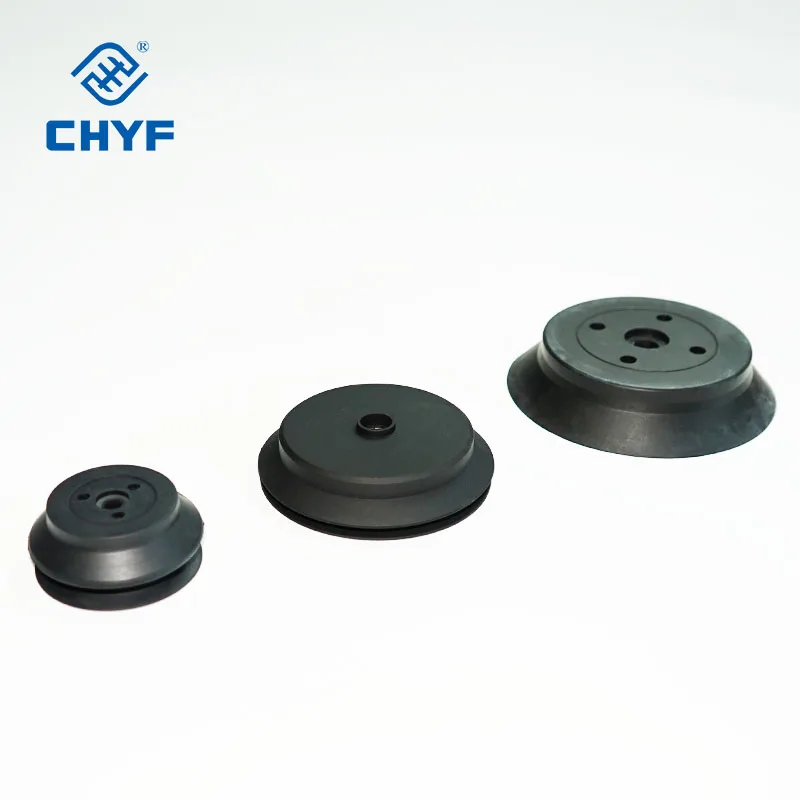

Compact Vacuum Pad Manipulator Vacuum Suction Cup ZP-C10/13/16/20/25/32/40/50 Single-layer Industrial Pneumatic Accessories
- Overview
- Recommended Products
Compact Type ZP3 Series
Overall length shortened
Pad form: Flat type, Flat type with groove, Bellows type, Bellows type with ribs
Mounting: Male thread, Female thread
Vacuum inlet direction: Vertical, Lateral
Vacuum inlet: Male thread, Female thread, One-touch fitting, Barb fitting
Buffer: Without, With[Buffer stroke [mm]: 3, 6, 10, 15, 20]
| Series | Pad form | Pad diameter(mm) |
|---|---|---|
| ZP3 | Flat type | φ1.5,φ2,φ3.5 |
| ZP3 | Flat type with groove | φ4,φ6,φ8,φ10,φ13,φ16 |
| ZP3 | Bellows type | φ4,φ6,φ8 |
| ZP3 | Bellows type with ribs | φ10,φ13,φ16 |
