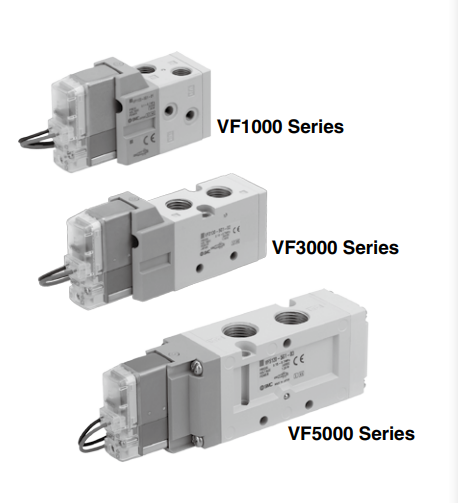

5-Port Solenoid Valve VF1000/3000/5000 VF5120-5DD1-02

5-Port Solenoid Valve VF1000/3000/5000 VF5120-5DD1-02

Overview
Recommended Products

CHYF

Introducing the CHYF 5-Port Solenoid Valve VF1000/3000/5000 VF5120-5DD1-02, a top-of-the-line product designed to meet all your pneumatic system needs. This versatile valve offers five ports, allowing for efficient and precise control of air flow in a variety of applications.

The CHYF 5-Port Solenoid Valve is perfect for industrial settings where reliability and performance are key. Whether you need to control air flow in a manufacturing plant, automotive shop, or laboratory, this valve is up to the task. Its durable construction ensures long-lasting use, even in demanding environments.

Installation of the CHYF 5-Port Solenoid Valve is quick and easy, thanks to its user-friendly design and clear instructions. The valve is compact and lightweight, making it easy to integrate into existing pneumatic systems without taking up too much space. Plus, with its high flow CHYF rate and precise control, you can trust this valve to deliver consistent performance every time.

One of the standout features of the CHYF 5-Port Solenoid Valve is its reliability. Built with quality materials and precision engineering, this valve is designed to withstand the rigors of daily use without sacrificing performance. You can trust that this valve will operate smoothly and efficiently for years to come, saving you time and money on maintenance and replacements.

In addition to its durability, the CHYF 5-Port Solenoid Valve offers excellent compatibility with a wide range of pneumatic systems. Whether you're working with air compressors, pneumatic cylinders, or other pneumatic tools, this valve is sure to meet your needs. Its versatile design and high performance make it a valuable asset in any industrial setting.

the CHYF 5-Port Solenoid Valve VF1000/3000/5000 VF5120-5DD1-02 is a top-of-the-line product that combines quality, reliability, and performance. With its durable construction, easy installation, and compatibility with a wide range of pneumatic systems, this valve is sure to exceed your expectations. Trust CHYF to deliver the best in pneumatic system solutions.

Features

Power consumption is reduced by power saving circuit.

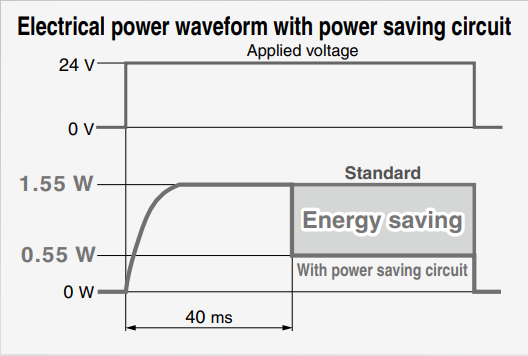

Power consumption is decreased by approx. 1/3 by reducing the wattage required to hold the valve in an energized state. (Effective energizing time is over 40 ms at 24 VDC) Refer to electrical power waveform as shown below.

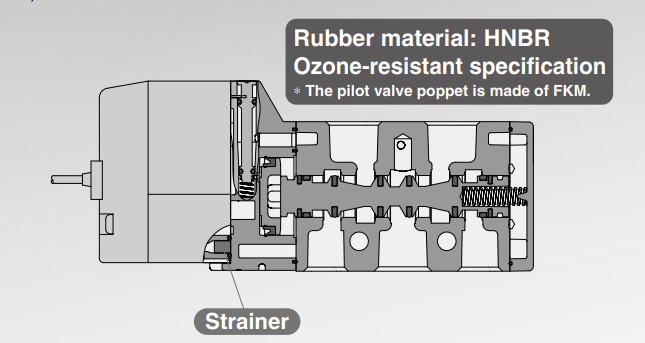

Built-in strainer in the pilot valve

Unexpected troubles due to foreign matter can be prevented. Note)

Be sure to mount an air filter on the inlet side.

Series	Flow rate characteristics 4/2→5/3 (A/B→EA/EB) C［dm3/（s・bar）］	Flow rate characteristics 4/2→5/3 (A/B→EA/EB) b	Flow rate characteristics 4/2→5/3 (A/B→EA/EB) Cv	Applicable cylinder size	Power consumption (W)
VF1000	0.53	0.28	0.13	φ40	1.55(Standard) 0.55(With power saving circuit) 0.4 (Low wattage specification)
VF3000	3.1	0.32	0.75	φ80	1.55(Standard) 0.55(With power saving circuit) 0.4 (Low wattage specification)
VF5000	10.0	0.49	2.9	φ125	1.55(Standard) 0.55(With power saving circuit)

Certifications

5000 vf5120 5dd1 02909-3

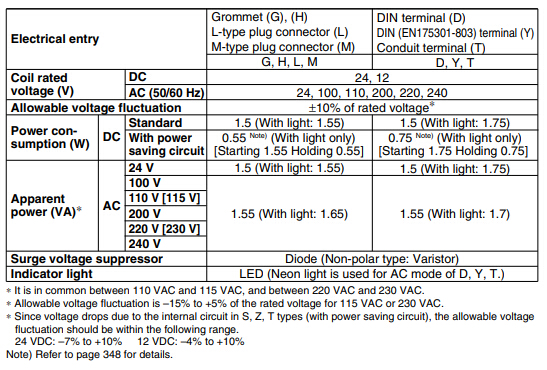

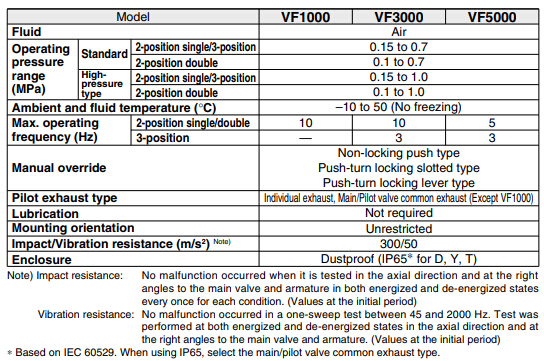

Mode					VF1000	VF3000	VF5000
Fluid					Air
pressure ange (MPa)	Standard	2-position single/3-position	0.15 to 0.7
	Standard			2-position double	0.1 to 0.7
		Highpressure type	2-position single/3-position	0.15 to 1.0
		Highpressure type		2-position double	0.1 to 1.0
Ambient and fluid temperature (°C)					–10 to 50 (No freezing)
Max. operating frequency (Hz)	2-position single/double			10	10	5
Max. operating frequency (Hz)		3-position			----	3	3
Manual override					Non-locking push type Push tun locking slotted type Push-turn locking lever type
Pilot exhaust type					Individual exhaust, Main/Pilot valve common exhaust (Except VF1000)
Lubrication					Not required
Mounting orientation					Unrestricted
Impact/Vibration resistance (m/s2) Note)					300/50
Enclosure					Dustproof (IP65∗ for D, Y, T)

Note) Impact resistance: Vibration resistance: ∗ Based on IEC 60529. When using IP65, select the main/pilot valve common exhaust type. No malfunction occurred in a one-sweep test between 45 and 2000 Hz. Test was performed at both energized and de-energized states in the axial direction and at the right angles to the main valve and armature. (Values at the initial period) No malfunction occurred when it is tested in the axial direction and at the right angles to the main valve and armature in both
energized and de-energized states every once for each condition. (Values at the initial period)

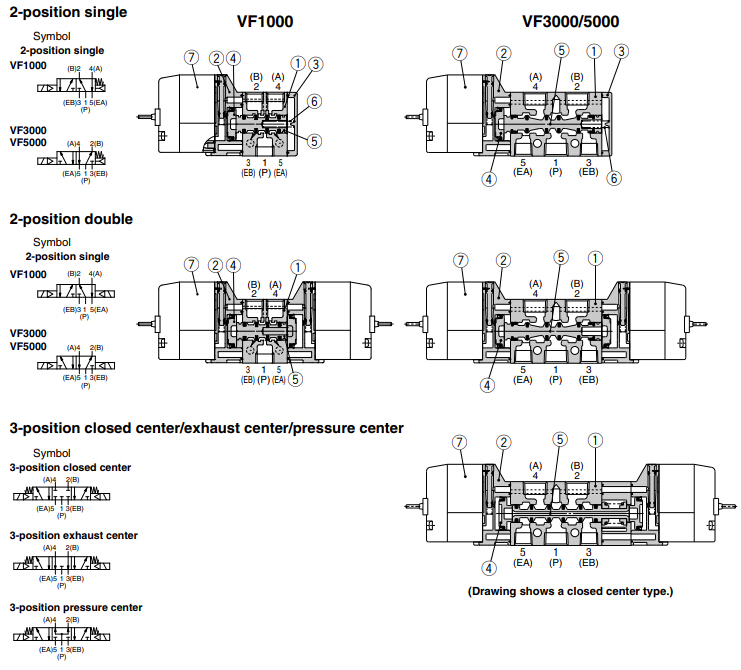

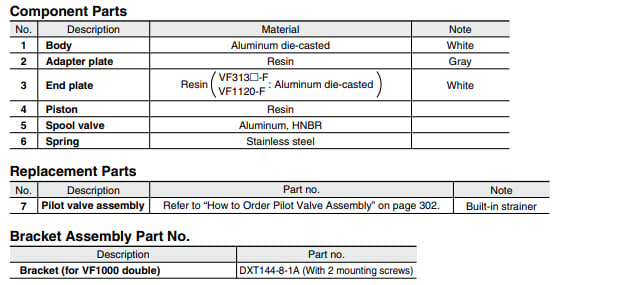

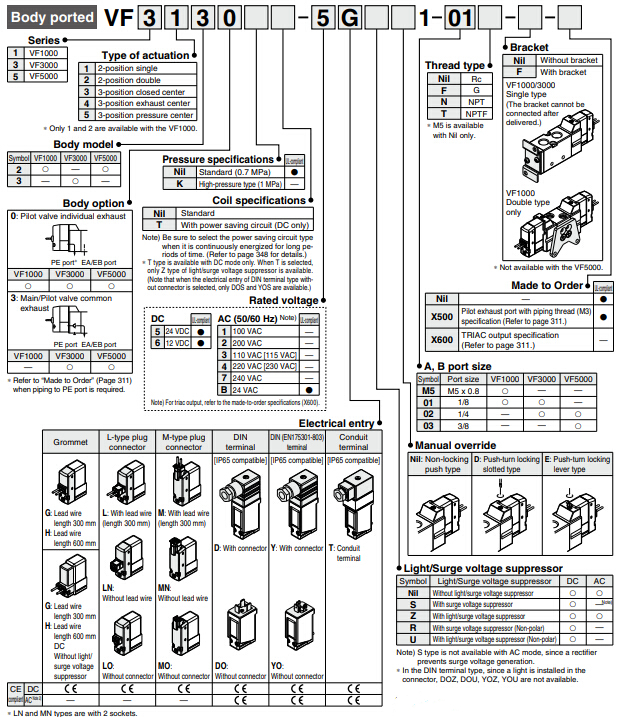

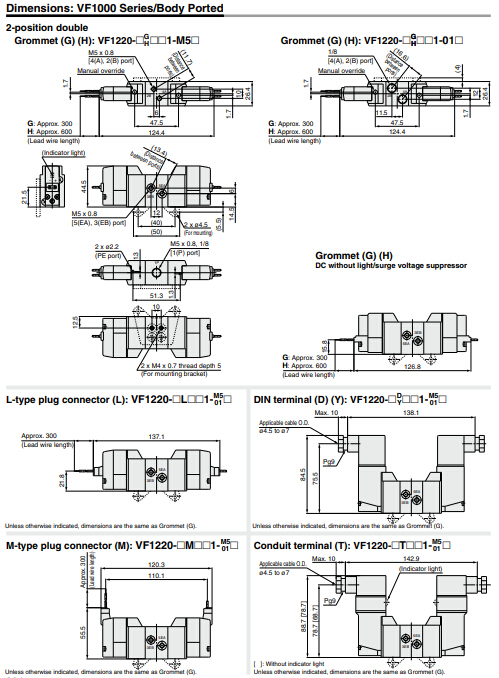

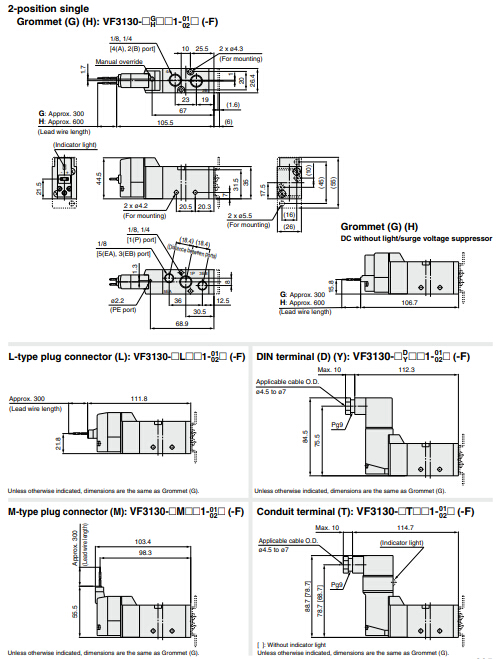

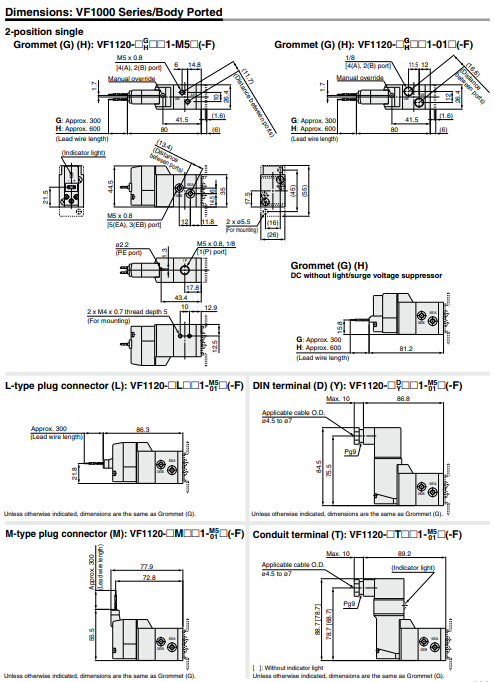

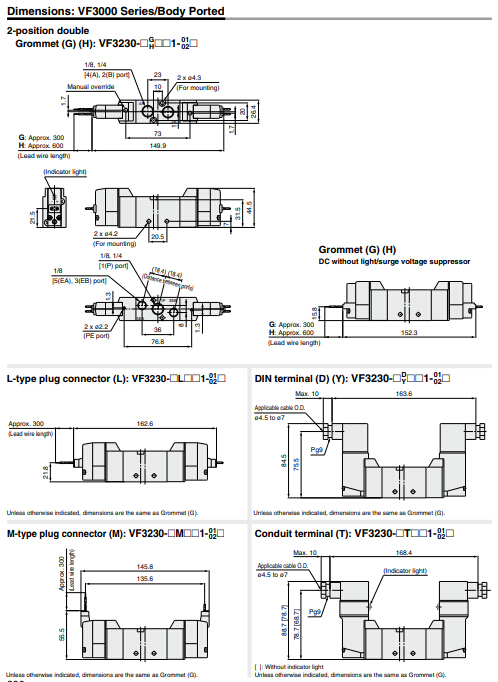

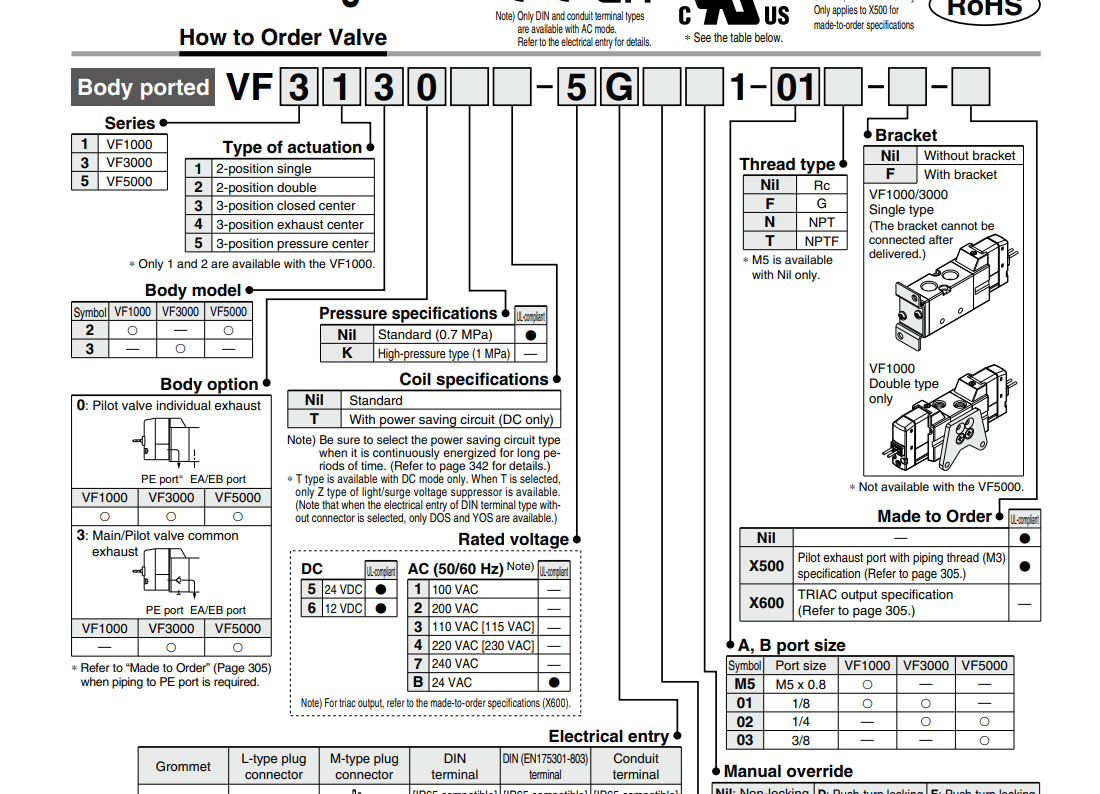

How to order

5000 vf5120 5dd1 02909-6

5000 vf5120 5dd1 02909-13
