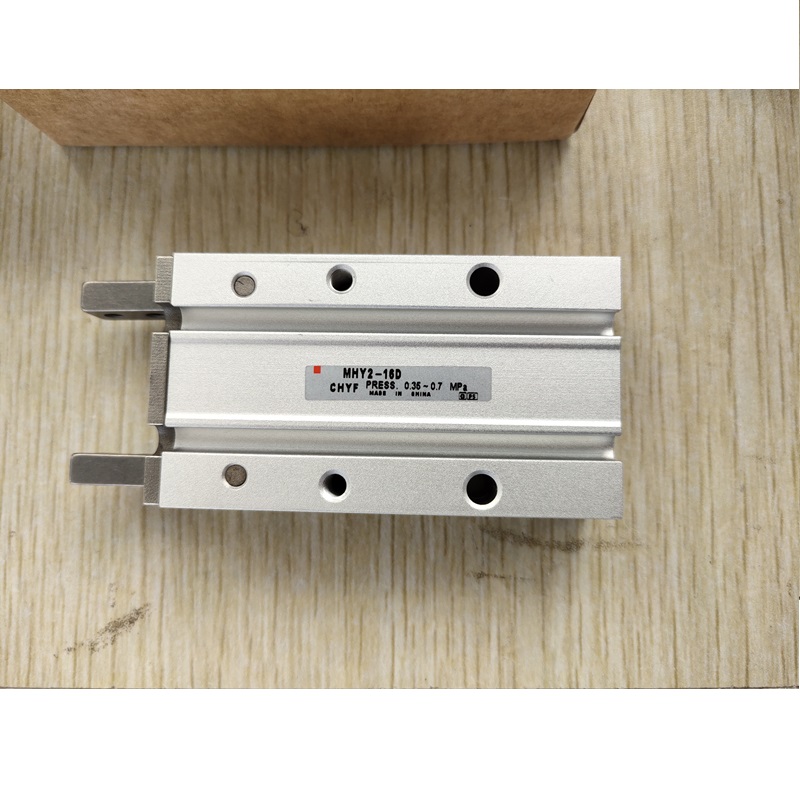

CHYF Pneumatic Double Acting Air Gripper Cylinder MHY2-25D MHY2-10D MHY216D MHY2-20D MHY2-25D
- Overview
- Recommended Products
Introducing, the CHYF’s Pneumatic Double Acting Air Gripper Cylinder, a reliable and efficient solution for your gripping needs. This product is designed to provide smooth and precise gripping action, making it ideal for a wide range of applications in industries such as manufacturing, automation, and robotics.
The CHYF’s Pneumatic Double Acting Air Gripper Cylinder comes in various sizes, including MHY2-25D, MHY2-10D, MHY2-16D, MHY2-20D, and MHY2-25D, giving you the flexibility to choose the right size for your specific requirements. Whether you need to grip small components or larger objects, this air gripper cylinder delivers consistent performance and reliability.
With its double acting design, this air gripper cylinder can provide both opening and closing functions, allowing for greater control and precision in gripping operations. The durable construction and high-quality materials ensure long-lasting performance, even in demanding industrial environments.
Installation and operation of the CHYF’s Pneumatic Double Acting Air Gripper Cylinder are simple and straightforward, making it easy to integrate into your existing systems. The compact and lightweight design also allows for easy mounting and positioning, saving you time and effort during setup.
In addition to its practical design, the CHYF’s Pneumatic Double Acting Air Gripper Cylinder offers excellent value for money. With its competitive pricing and high-performance capabilities, this product delivers a cost-effective solution for your gripping needs.
The CHYF’’s Pneumatic Double Acting Air Gripper Cylinder is a top-notch product that combines quality, reliability, and affordability. Whether you're looking to improve efficiency in your production line or enhance automation processes, this air gripper cylinder is the perfect choice. Trust CHYF for all your pneumatic gripping needs and experience the difference in performance and quality
CHYF Pneumatic Double Acting Air Gripper Cylinder MHY2-25D MHY2-10D MHY216D MHY2-20D MHY2-25D
Quick Detail:
* Parallel air Gripper series MHY2
* Double action single action for option
* Various finger type selectable
* Cylinder body several type for your choice
* Built-in magnetic, suitable slot on 2 sides is designed for magnetic sensor fixing
* With high precision integral linear guide and high rigidity gripper
* Machined by advance CNC center, air gripper are with long life time and easy to mantian
* With self-lubricating bearing, lubrication free
* Bore size 6mm,10mm, 16mm, 20mm, 25mm, 32mm, 40mm
Specifiction
| Model | MHY2-10D | MHY2-16D | MHY2-20D | MHY2-25D |
| Working Medium | Air | |||
| Motion Pattern | Double Action | |||
| Max. Operating Pressure | 0.6MPa - 6.1kfg/cm2 | |||
| Min. Operating Pressure | 0.1MPa - 1.0kfg/cm2 | |||
| Ambient & Medium Temp. | -10~+60℃ | |||
| Highest Operating Frequency | 60cpm | |||
| Precision | ±0.2mm | |||
| Retentivity N/m (kgf/cm2) | 0.16 (1.6) | 0.54 (5.5) | 1.10 (11.2) | 2.28 (23.3) |
| Weight (kg) | 70 | 150 | 320 | 560 |
| Lubricate | No required | |||
| Port Size | M5×0.8 | |||
