Introducing the Diaphragm Clamping Cylinder EV-15/40/63/20/75/120/180/30-3/4/5 by CHYF, a reliable and versatile tool for a wide range of industrial applications.
This innovative clamping cylinder is designed to securely hold materials in place during machining, welding, cutting, and other processes. Its diaphragm design allows for quick and easy adjustments, making it ideal for precision work where accuracy is crucial.
With a range of sizes available, including 15mm, 40mm, 63mm, 20mm, 75mm, 120mm, 180mm, and 30mm, 3/4 inch, 5 inch, the Diaphragm Clamping Cylinder CHYF EV is suitable for projects of all scales. Whether you are working on small components or large structures, this cylinder can accommodate your needs.
The cylinder is constructed from high-quality materials that are built to last, ensuring durability and reliability even in the most demanding environments. It is easy to install and operate, making it a user-friendly choice for both experienced professionals and those new to using clamping cylinders.
In addition to its practical design, the Diaphragm Clamping Cylinder EV is also incredibly efficient. Its advanced technology allows for precise control over clamping force, ensuring that your materials are held securely in place without damaging them.
CHYF is a trusted brand known for producing high-quality industrial tools, and the Diaphragm Clamping Cylinder EV is no exception. It has been rigorously tested to meet the highest standards of performance and safety, giving you peace of mind while you work.
Whether you are a machinist, welder, fabricator, or anyone else in need of a reliable clamping solution, the Diaphragm Clamping Cylinder EV by CHYF is the perfect choice. Its versatility, durability, and user-friendly design make it a must-have tool for any workshop or job site. Invest in the best with CHYF and experience the difference for yourself.

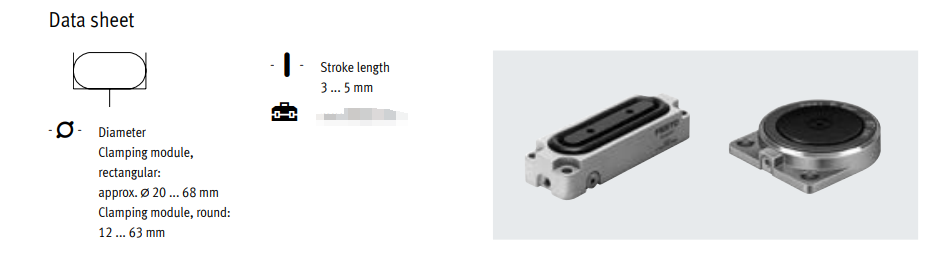

Clamping module EV
* Compact rodless cylinder with diaphragm
* Single-acting, with reset function
* Flat design
* Hermetically sealed
* Pressure plates and foot mounting as accessories
Clamping area |
10x30 |
15x40 |
15x63 |
20x75 |
20x120 |
20x180 |
||||||
Pneumatic connection |
M3 |
M5 |
||||||||||
Operating medium |
Compressed air to ISO 8573-1: 2010 [7: –: –] |
|||||||||||
Design |
Diaphragm |
|||||||||||
Cushioning |
None |
|||||||||||
Position sensing |
None |
|||||||||||
Type of mounting |
With through-hole |
|||||||||||
With accessories |
||||||||||||
Mounting position |
Any |
|||||||||||

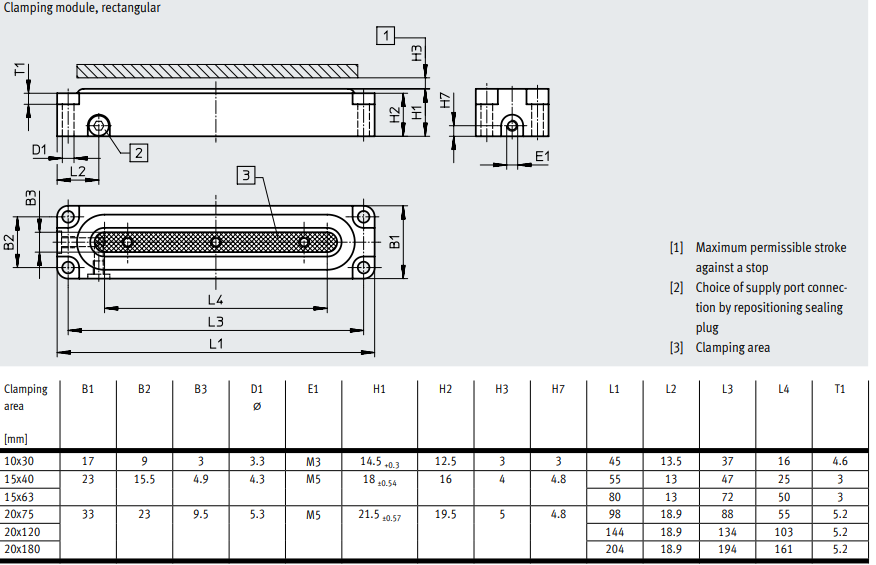

Clamping area (mm) |
Stroke (mm) |
Type |
|
10x30 |
3 |
151993 |
EV-1 0/30-3 |
15x40 |
4 |
13289 |
EV-1 5/40-4 |
15x63 |
4 |
13290 |
EV-1 5/63-4 |
20x75 |
5 |
13291 |
EV-2 0/75-5 |
20x120 |
5 |
13292 |
EV-2 0/120-5 |
20x180 |
5 |
13293 |
EV-2 0/180-5 |
