The value of the noise reduction for the existing model
AN□03(compact type) is25 dB(A) Sonic conductance C: 1 to 18 [dm3/(s·bar) Connection method
M thread, R (NPT) thread type
One-touch fitting connection type
- Overview
- Recommended Products
CHYF
Introducing the CHYF Exhaust Muffler Silencer, the perfect solution for reducing noise and enhancing the performance of your vehicle. Designed with quality and durability in mind, this muffler silencer is a must-have accessory for any car enthusiast.
Made from high-quality materials, the CHYF Exhaust Muffler Silencer is built to last. Its sturdy construction ensures that it can withstand the rigors of daily use, CHYF providing you with long-lasting performance and reliability. Whether you're cruising down the highway or tearing up the track, this muffler silencer will help keep your engine running smoothly and quietly.
The CHYF Exhaust Muffler Silencer is designed to fit a variety of vehicles, making it a versatile option for car owners of all kinds. With multiple size options available, including AN10-01, 20-02, 30-03, 40-04, 500-06, and 600, you can choose the perfect silencer for your specific make and model. Plus, the easy installation process means you can quickly and easily upgrade your exhaust system without any hassle.
Not only does the CHYF Exhaust Muffler Silencer reduce noise levels, but it also helps improve the overall performance of your vehicle. By minimizing back pressure and increasing exhaust flow, this silencer can help boost horsepower and torque, giving you a smoother and more efficient driving experience. Say goodbye to annoying engine noise and hello to a more enjoyable ride with the CHYF Exhaust Muffler Silencer.
In addition to its performance benefits, the CHYF Exhaust Muffler Silencer also adds a stylish touch to your vehicle's exterior. With its sleek design and polished finish, this silencer is sure to turn heads wherever you go. Upgrade your car's appearance and functionality with the CHYF Exhaust Muffler Silencer today.
the CHYF Exhaust Muffler Silencer is a top-quality product that delivers on both performance and style. Whether you're looking to reduce noise levels, improve engine performance, or simply enhance the look of your vehicle, this muffler silencer has you covered. Upgrade your exhaust system with the CHYF Exhaust Muffler Silencer and experience the difference for yourself.
Place of Origin |
China |
Zhejiang |
|
Brand Name |
CHFY |
Working Medium |
Air |
Origin |
Zhejiang |
HS Code |
3917400000 |
Products Description

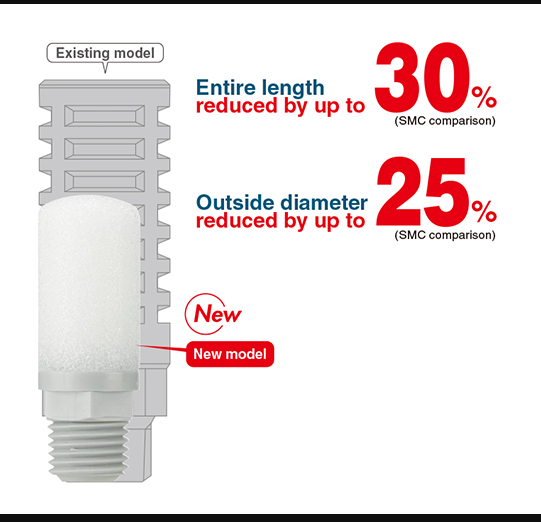

The resin silencer is now a more compact size!
Noise reduction improved: 30dB (A)

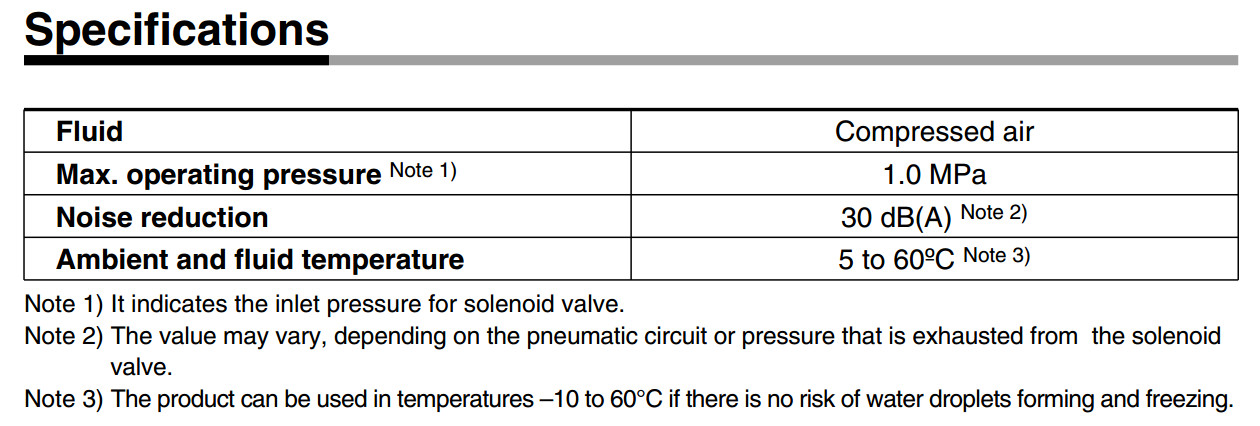

Datasheet
Fluid |
Compressed air |
Max. operating pressure Note 1) |
1.0 MPa |
Noise reduction |
30 dB(A) Note 2) |
Ambient and fluid temperature |
5 to 60ºC Note 3) |
Note 1) It indicates the inlet pressure for solenoid valve.
Note 2) The value may vary, depending on the pneumatic circuit or pressure that is exhausted from the solenoid valve.
Note 3) The product can be used in temperatures –10 to 60°C if there is no risk of water droplets forming and freezing.

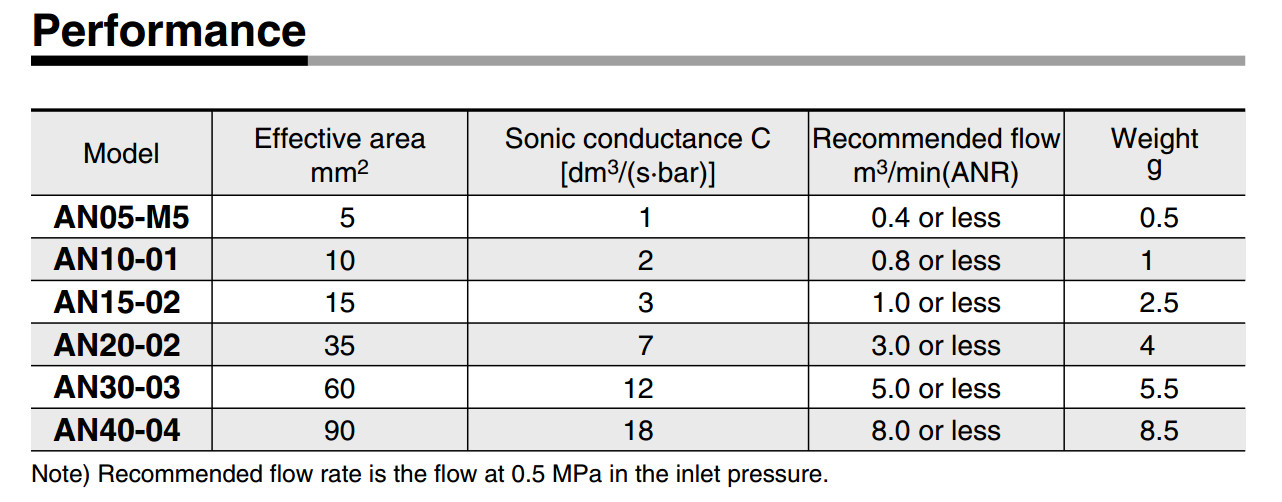

Perfoemance
Model |
Effective area mm2 |
Sonic conductance C [dm3/(s·bar) |
Recommended flow m3/min(ANR) |
Weight g |
AN05-M5 |
5 |
1 |
0.4 or less |
0.5 |
AN10-01 |
10 |
2 |
0.8 or less |
1 |
AN15-02 |
15 |
3 |
1.0 or less |
2.5 |
AN20-02 |
35 |
7 |
3.0 or less |
4 |
AN30-03 |
60 |
12 |
5.0 or less |
5.5 |
AN40-04 |
90 |
18 |
8.0 or less |
8.5 |

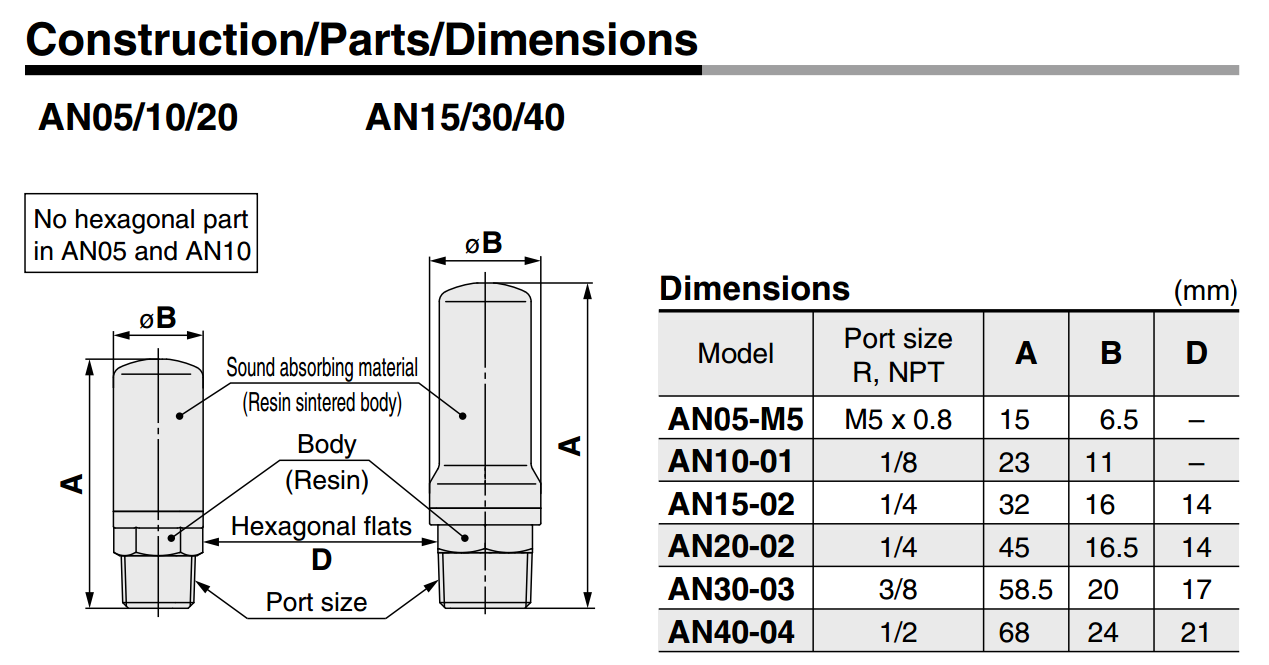

Dimensions
Model |
Port size R, NPT |
A |
B |
D |
AN05-M5 |
M5 x 0.8 |
15 |
6.5 |
- |
AN10-01 |
1/8 |
23 |
11 |
- |
AN15-02 |
1/4 |
32 |
16 |
14 |
AN20-02 |
1/4 |
45 |
16.5 |
14 |
AN30-03 |
3/8 |
58.5 |
20 |
17 |
AN40-04 |
1/2 |
68 |
24 |
21 |
FAQ
Q: Are you trading company or manufacturer? A: We are factory with more than 20 years experience in this field. Q: How long is your delivery time? A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity. Q: What is your terms of payment? A: Payment=500USD, 30% T/T in advance, balance before shippment.
