Plastic Tubing PAN High Thermal and Mechanical Load Capacities Highly Resistant to Microbes Pipe Flame Resistant Tube

Plastic Tubing PAN High Thermal and Mechanical Load Capacities Highly Resistant to Microbes Pipe Flame Resistant Tube

Overview
Recommended Products

CHYF

Introducing the CHYF Plastic Tubing PAN, a top-of-the-line solution for all your tubing needs. Made with high thermal and mechanical load capacities, this tubing is built to withstand even the toughest of conditions. Whether you're using it for industrial, commercial, or residential purposes, you can trust that CHYF Plastic Tubing PAN will get the job done.

One of the standout features of this tubing is its high resistance to microbes. This CHYF means that you can count on it to stay clean and sanitary, even in environments where bacteria and other microorganisms may be present. This makes it an ideal choice for applications in healthcare facilities, laboratories, food processing plants, and more.

Additionally, the CHYF Plastic Tubing PAN is flame resistant, providing an extra layer of safety and protection. You can have peace of mind knowing that this tubing has been designed to meet strict safety standards and can help prevent the spread of fires in your facility.

With its durable construction and superior performance, the CHYF Plastic Tubing PAN is the perfect choice for a wide range of applications. Whether you're looking to transport liquids, gases, or other materials, this tubing is up to the task. Its versatility and reliability make it a must-have for any project.

In addition to its impressive technical specifications, the CHYF Plastic Tubing PAN is also easy to install and maintain. Its lightweight design and flexible material make it a breeze to work with, saving you time and effort during the installation process. Plus, its low maintenance requirements mean that you can spend less time worrying about upkeep and more time focusing on your other tasks.

the CHYF Plastic Tubing PAN is a top-quality product that delivers outstanding performance and reliability. Whether you're in need of tubing for a small-scale project or a large-scale operation, you can trust that this tubing will meet and exceed your expectations. Invest in the CHYF Plastic Tubing PAN today and experience the difference for yourself.

Certifications

Plastic tubing PAN

The plastic tubing PAN is ideally suited for use in standard applications as well as in extended pressure and temperature ranges.

* Polyamide
* High thermal and mechanical load capacities
* Highly resistant to microbes
* Operating medium: compressed air, vacuum

At a glance

Meets all requirements even for standard applications in extended pressure and temperature ranges.

• Polyamide

• High thermal and mechanical load capacities

• Highly resistant to microbes

• Operating medium: compressed air, vacuum

Product segmentationPipe/tubing O. D. x wall thickness

For standard O. D. tubing, the outside diameter of the tube and the wall thickness are given as the tube size.

Product packaging

Packaging unit [m]

Standard: 50 m

• In some cases, available in longer lengths on a reel

How to order

001	Series
PAN	Standard O. D. tubing
002	Pipe/tubing O. D. x wall thickness
4x0, 75	4x0, 75mm
6x1	6x1mm
8x1, 25	8x1, 25mm
10x1, 5	10x1, 5mm
12x1, 75	12x1, 75mm
14x2	14x2mm
16x2	16x2mm
003	Colour
NT	Natural
SW	Black
BL	Blue
SI	Silver
RT	Red
GN	Green
GE	Yellow
004	Packaging unit [m]
	Standard
100	100m
200	200m
300	300m
400	400m
500	500m

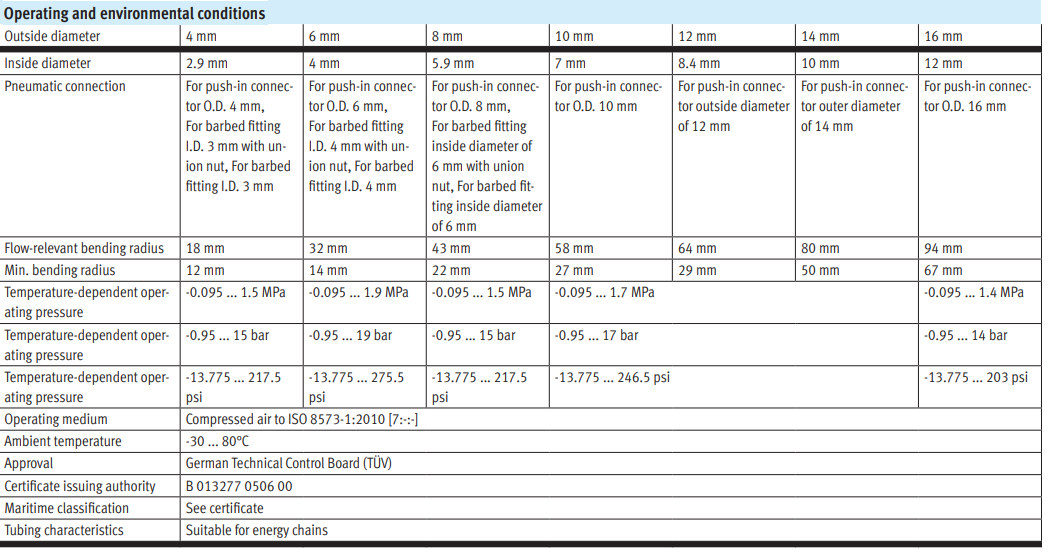

Datasheet

product plastic tubing pan high thermal and mechanical load capacities highly resistant to microbes pipe flame resistant tube-1

product plastic tubing pan high thermal and mechanical load capacities highly resistant to microbes pipe flame resistant tube-2

product plastic tubing pan high thermal and mechanical load capacities highly resistant to microbes pipe flame resistant tube-3

product plastic tubing pan high thermal and mechanical load capacities highly resistant to microbes pipe flame resistant tube-4
