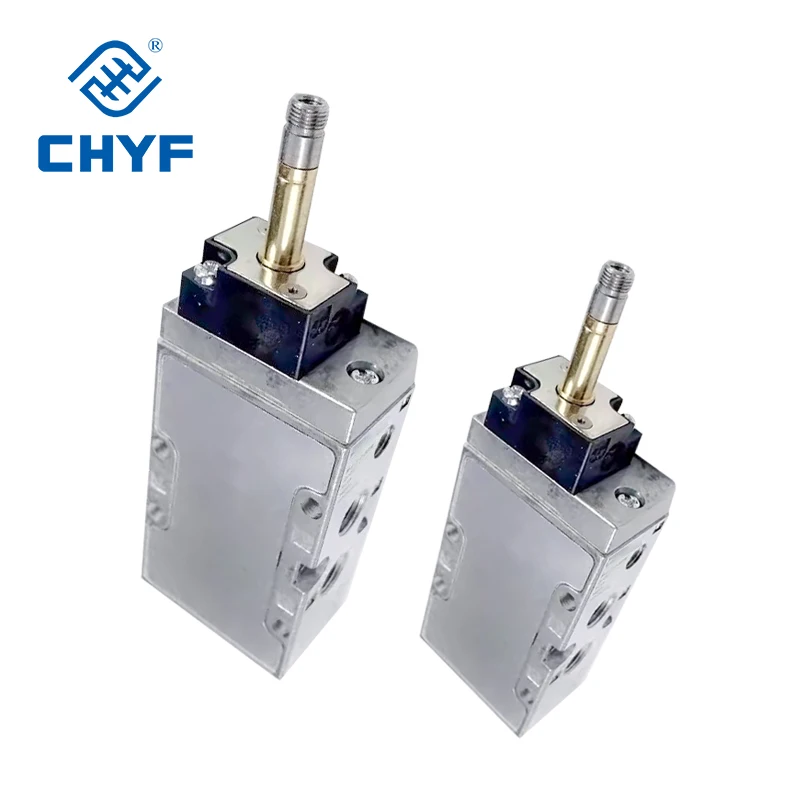

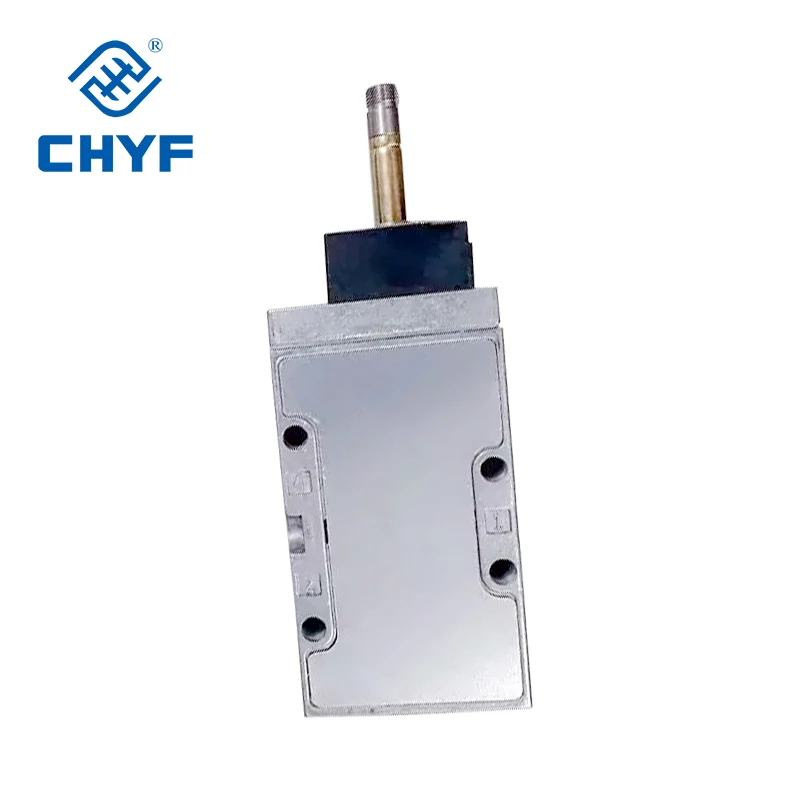

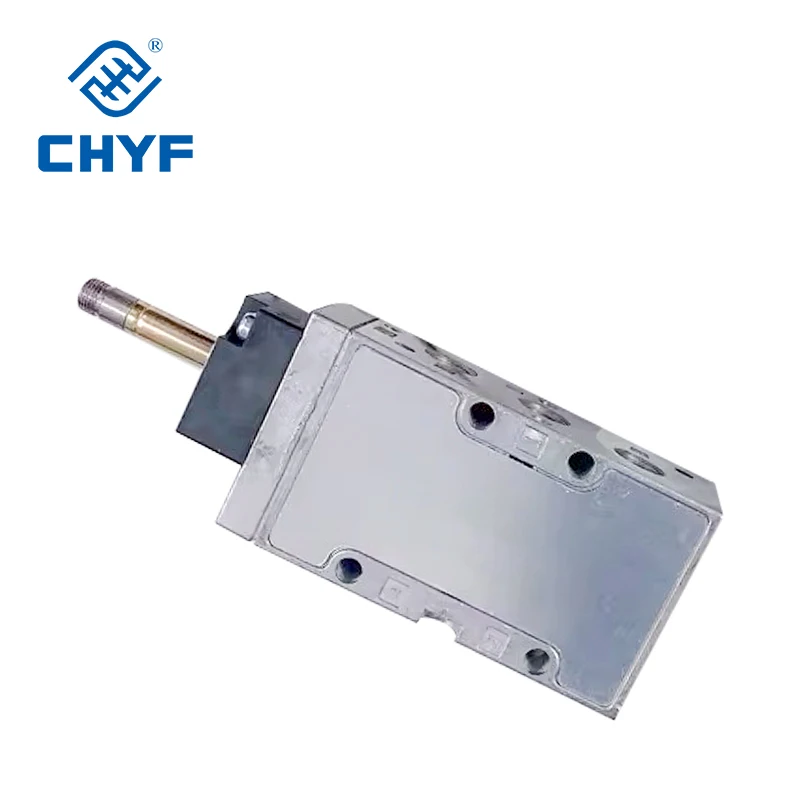

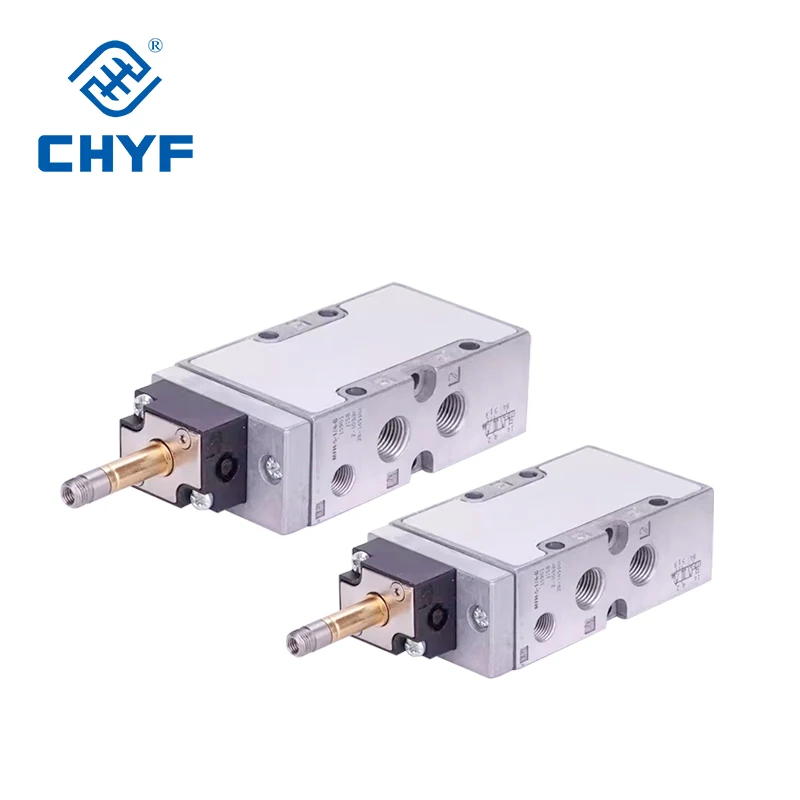

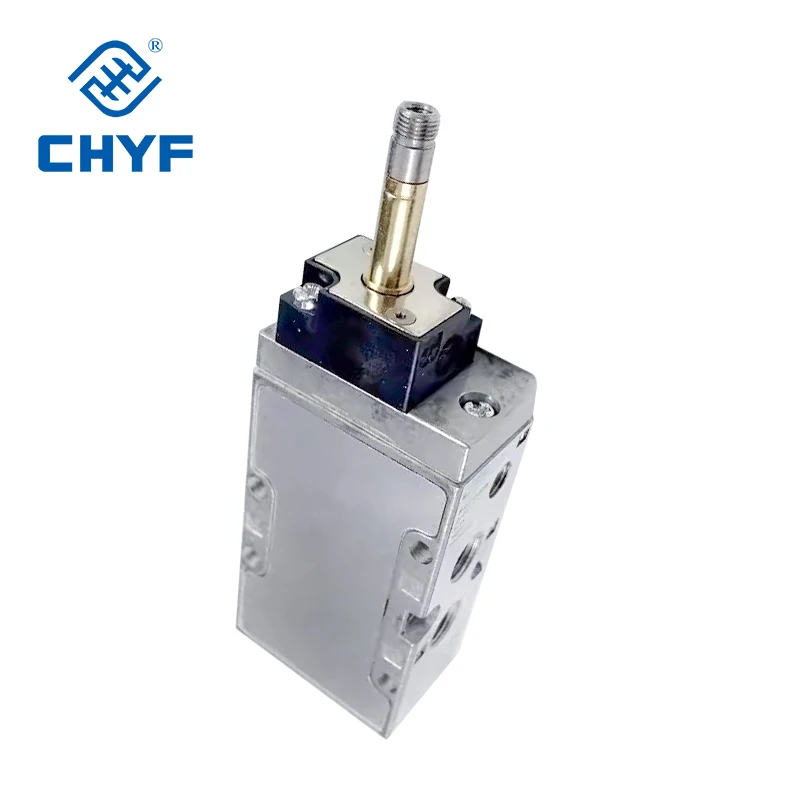

Pneumatic Components Cylinder 6211 MFH-5-1/4 Air Solenoid Valve 24v

Pneumatic Components Cylinder 6211 MFH-5-1/4 Air Solenoid Valve 24v

Overview
Recommended Products

Introducing, the CHYF’s Pneumatic Components Cylinder 6211 MFH-5-1/4 Air Solenoid Valve 24v, the perfect solution for all your pneumatic automation needs. This high-quality valve is designed to provide reliable and efficient operation in a variety of industrial applications.

The CHYF’s Cylinder 6211 MFH-5-1/4 Air Solenoid Valve features a durable construction and high-performance design that ensures smooth and consistent operation. With a 24v solenoid, this valve is capable of delivering fast response times and precise control over air flow. Whether you're looking to regulate pressure, control the movement of pneumatic actuators, or automate machinery processes, this valve is up to the task.

The CHYF’s Cylinder 6211 MFH-5-1/4 Air Solenoid Valve is easy to install and simple to use, making it a convenient and cost-effective solution for your pneumatic systems. Its compact size and lightweight design allow for easy integration into existing systems, while its rugged construction ensures long-lasting durability and performance.

With the CHYF’s Pneumatic Components Cylinder 6211 MFH-5-1/4 Air Solenoid Valve, you can count on reliable and efficient operation for all your industrial automation needs. Whether you're working in manufacturing, automotive, packaging, or any other industry that relies on pneumatic systems, this valve is the perfect choice for ensuring smooth and reliable operation.

Don't settle for subpar pneumatic components – choose the CHYF’s Cylinder 6211 MFH-5-1/4 Air Solenoid Valve for superior performance and peace of mind. With its high-quality construction, advanced design, and user-friendly features, this valve is the ideal solution for all your pneumatic automation needs. Upgrade your systems today with the CHYF’s Pneumatic Components Cylinder 6211 MFH-5-1/4 Air Solenoid Valve and experience the difference for yourself

Product Paramenters

General information:

Particularly sturdy poppet valve principle for all 3/2- and 5/2-way valves

• Pneumatically actuated or electrically with F solenoid coil

• With flow rate performance of up to 7500 l/min

• With internal or external pilot air

• Pipe connection thread in sizes G1/8, G1/4, G1/2 and G3/4

• Proven mounting using hollow bolt on PAL or PRS rail - without ATEX category

• Optimised switching times thanks to patented U-ring and servo control

• Note: Valves for potentially explosive atmospheres (ATEX category) are not suitable for mounting on PAL manifold rails or PRS manifold blocks

F solenoid coils:

•Voltage 12 to 230 V DC; 12 to 240 V AC - 50 to 60 Hz

• Power consumption 4.1 to 5.5 W DC; 3.85 to 9 VA AC

• Selected types in accordance with the ATEX directive for potentially explosive atmospheres

• Solenoid coil can be easily replaced at a later date

•Solenoid coil not included in the scope of delivery

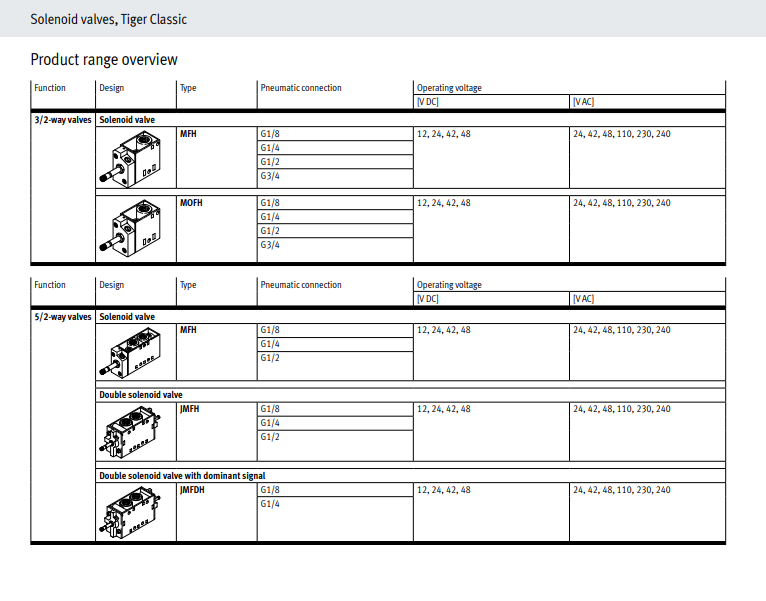

Variants:

• VL/O-3- : normally closed or normally open, depending on the choice of connections

• MFH-3- : MOFH-3- MFH-3- Normally closed, MOFH-3- Normally open; by turning the seal under the cover, these valves can be converted to the other valve versions

• MFH-3-S : This valve type can be used within a range of 0 to 0.8 MPa and also as MOFH (through flow when not actuated) with a separate pilot line

• MFH-5-S : The external pilot air connection means that these valves can also be used with low operating pressures

Mounting method

The valves Tiger Classic can be mounted on manifold rails PAL with common supply port or on PRS manifold blocks with common supply port and common exhausts. The valves are attached to the rails and blocks using hollow bolts. The manifold rail and manifold block have 2 to 6 valve positions. Vacant positions on the PAL manifold rails can be sealed with cap nuts, and on the PRS blocks cover plates can be used. The individual valves can be supplied with separate pressure levels via hollow bolts with threaded connections

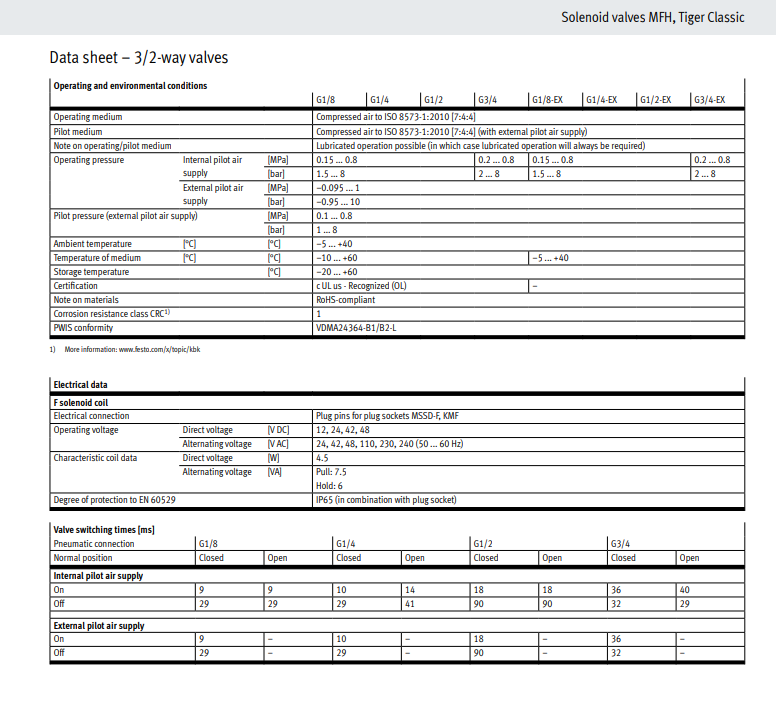

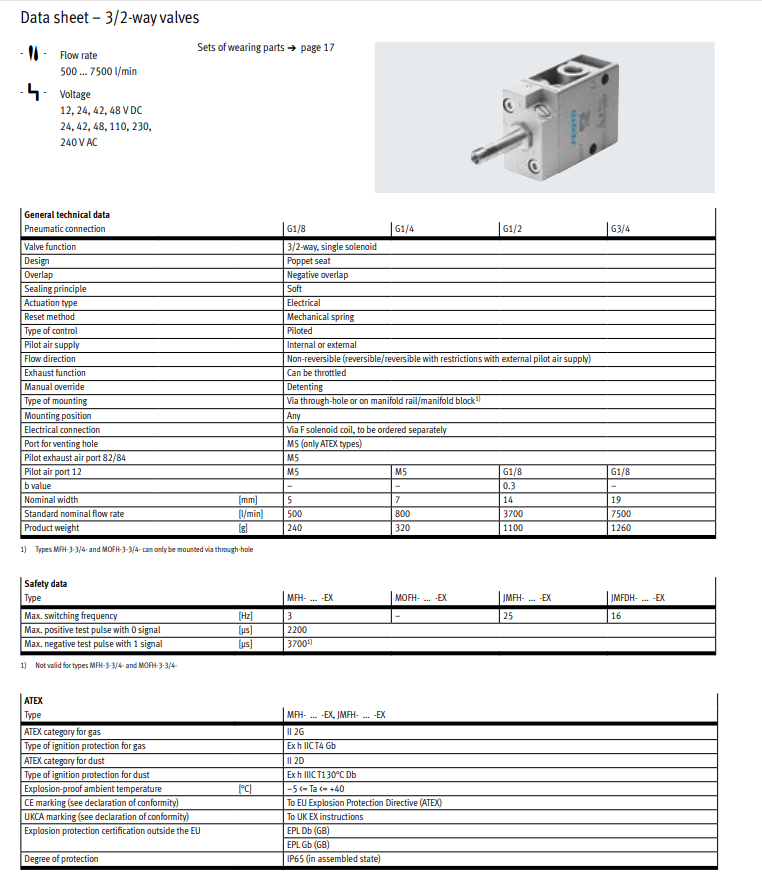

Datasheet

Valve function	3/2-way, closed, monostable, 3/2 open, single solenoid
Design	Poppet seat
Type of actuation	Electric
Type of reset	Mechanical spring
Type of piloting	Pilot actuated
Pilot air supply	External
Flow direction	Non-reversible, Reversible
Exhaust-air function	With flow control option
Manual override	Detenting
Type of mounting	Either: On manifold rail, With through-hole
Electrical connection	Via F coil, to be ordered separately
Breather connection	M5
Operating pressure	-0.095... 1 MPa
Pilot pressure	1... 8 bar
Pilot pressure	0.1... 0.8 MPa
Ambient temperature	-5... 40°C

How to order

4 air solenoid valve 24v-1

4 air solenoid valve 24v-2

FAQ

1. who are we
We are based in Zhejiang, China, start from 2020, sell to Eastern Europe(50.00%), North America(50.00%). There are total about 11-50people in our office.

2. how can we guarantee quality
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3. what can you buy from us

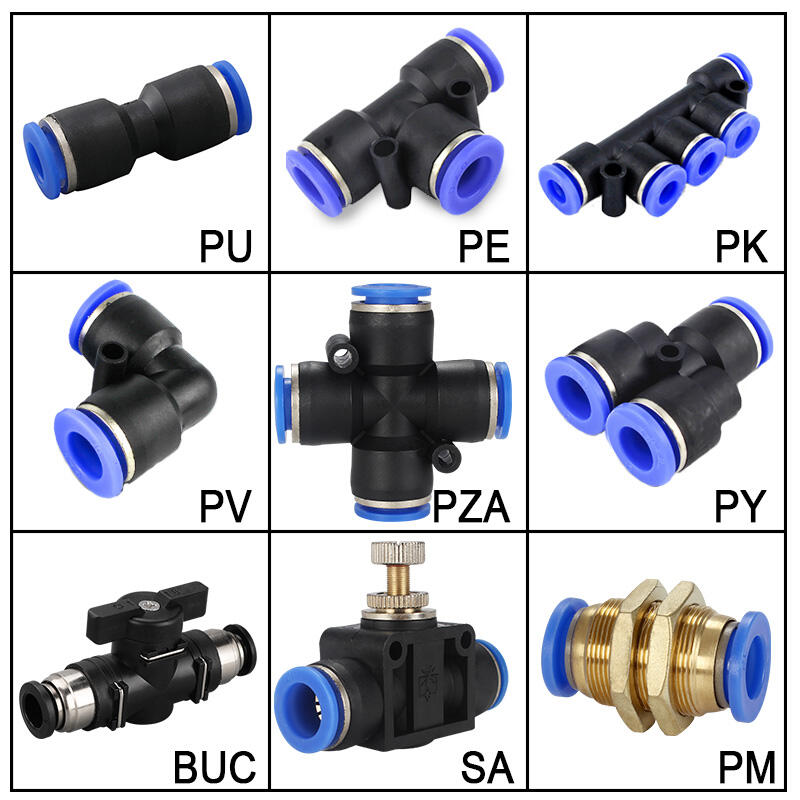

Pnuematic Fittings, Pneumatic Cylinders, Solenoid Valve, Air Resource, Cylinder accessories
