Introducing, the SME-8M-DS-24V-K-0.3-M8D 543861 Cylinder Proximity Travel Magnetic Switch Sensor, a top-of-the-line product from CHYF. This innovative sensor is designed to provide precise and reliable proximity detection for a wide range of applications.
The SME-8M-DS-24V-K-0.3-M8D 543861 sensor features a durable construction and high-quality materials, ensuring long-lasting performance in even the most demanding environments. With a voltage rating of 24V and a 0.3m sensing distance, this sensor is capable of accurately detecting the presence of objects in its proximity with ease.
One of the key features of the SME-8M-DS-24V-K-0.3-M8D 543861 sensor is its magnetic switch technology, which allows for quick and efficient operation without the need for physical contact. This makes it ideal for applications where contactless sensing is required, such as in automated manufacturing processes or robotics.
The sensor is easy to install and set up, thanks to its M8D connector design. This allows for simple integration with existing systems and equipment, reducing downtime and increasing overall efficiency. Additionally, the sensor is compact and lightweight, making it easy to mount in tight spaces or on moving parts.
With its high level of accuracy and reliability, the SME-8M-DS-24V-K-0.3-M8D 543861 sensor is perfect for a wide range of industrial and commercial applications. Whether you need to monitor the position of a cylinder, detect the presence of objects on a conveyor belt, or ensure the proper alignment of equipment, this sensor has you covered.
The SME-8M-DS-24V-K-0.3-M8D 543861 Cylinder Proximity Travel Magnetic Switch Sensor from CHYF is a versatile and dependable solution for all your proximity sensing needs. With its advanced technology, durable construction, and easy installation, this sensor is sure to meet and exceed your expectations. Upgrade your existing systems with the SME-8M-DS-24V-K-0.3-M8D 543861 sensor today and experience the difference firsthand

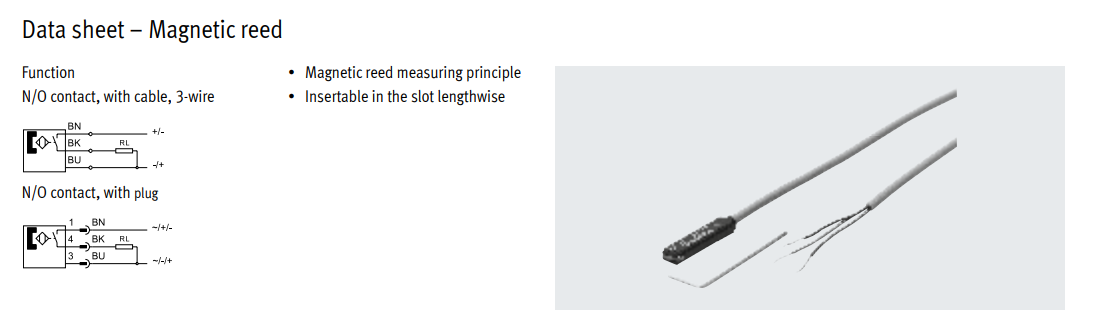

Proximity switch SME-8
* Measuring principle: magnetic reed
* Insertable in the slot lengthwise
* LED switching status indication
* Cable length 0.3, 2.5, 5, 7.5, 0.2... 10 m
Type |
SME-8-K |
SME-8-S |
SME-8-ZS |
SME-8-O |
|||
Design |
For T-slot |
||||||
Mounting position |
Any |
||||||
Measured variable |
Position |
||||||
Conforms to standard |
EN 60947-5-2 |
||||||
Certification |
RCM trademark |
||||||
Application information |
Support / Actuator-sensor overview |
||||||
Inductive protective circuit |
Adapted to MZ, MY, ME coils |
||||||
CE marking - see declaration of conformity |
To EU EMC Directive1 |
||||||
UKCA marking - see declaration of conformity |
To UK instructions for EMC |
||||||
Note on materials |
RoHS-compliant |
||||||
Item |
value |
Series |
SME8 |
Mounting Type |
For T-slot |
Description |
Magnetic reed |
Model Number |
SME-8-K-LED-24 |
Type |
Reed Switch |
Place of Origin |
China |
Zhejiang |
|
Brand Name |
CHYF |
Usage |
|
Ambient temperature |
-40 °C... 60 °C |
Max. switching frequency |
800 Hz |
Max. output current |
500 mA |
Operational voltage range AC |
12 V... 30 V |
Cable sheath colour |
Grey |
Product weight |
30 g |
Switching status indication |
Yellow LED |
