Introducing, the CHYF’s Standards-based Cylinder DSBC DSBC-40-50-80-100-125-160-200-PPVA-N3 DSBC 2123224, a high-quality and reliable pneumatic cylinder designed for a wide range of industrial applications. This cylinder is built to meet the highest standards of quality and performance, making it a smart choice for your pneumatic system needs.

The CHYF’s Standards-based Cylinder DSBC is available in various sizes ranging from 40mm to 200mm, allowing you to choose the right cylinder for your specific requirements. With a sturdy construction and durable materials, this cylinder is built to withstand even the toughest conditions in industrial environments.

Designed with precision engineering, this cylinder offers smooth and reliable operation, ensuring consistent performance over time. The advanced design of the cylinder provides maximum efficiency and productivity, making it a cost-effective solution for your pneumatic system.

One of the key features of the CHYF’s Standards-based Cylinder DSBC is its PPVA-N3 design, which offers enhanced performance and reliability. This design ensures smooth and accurate movement, making it ideal for applications where precise control is essential.

The DSBC 2123224 model is part of the CHYF Standards-based Cylinder DSBC series, which is known for its exceptional quality and durability. With a reputation for reliability and performance, you can trust this cylinder to deliver consistent and efficient operation for your industrial needs.

In addition to its superior performance, the CHYF’s Standards-based Cylinder DSBC is also easy to install and maintain, saving you time and effort. With its user-friendly design, this cylinder is a practical choice for any industrial setting.

The CHYF’s Standards-based Cylinder DSBC DSBC-40-50-80-100-125-160-200-PPVA-N3 DSBC 2123224 is a top-quality pneumatic cylinder that offers exceptional performance, durability, and reliability. Whether you need a cylinder for general industrial applications or specialized tasks, you can rely on this cylinder to deliver outstanding results every time. Upgrade your pneumatic system with the CHYF’s Standards-based Cylinder DSBC and experience the difference in quality and performance

Product Description

Standards-based cylinder DSBC

tandards-based profile cylinder to ISO 15552 with a wide variety of mounting options
* Self-adjusting pneumatic end-position cushioning saves time during commissioning and adapts optimally to load and speed changes
* ISO 15552 - ISO 6431, VDMA 24562
* Sustainable thanks to extended life cycle and easier repairs
* Standard profile with two sensor slots
* Wide range of variants for customised applications
* Comprehensive range of mounting accessories for just about every type of installation
* For position sensing
* Variants recommended for production systems for manufacturing lithium-ion batteries

DSBC-...-C – with clamping unit, standard hole pattern

• Standard hole pattern

• Piston rod can be clamped in any position

• The piston rod can be held in position for long periods even with alternating loads, fluctuating operating pressure or leaks in the system Additional measures are required for use in safety-related applications; in Europe, for example, the standards listed under the EC Machinery Directive must be observed

Without additional measures in accordance with legally specified minimum requirements, the product is not suitable as a safety-related component in control systems

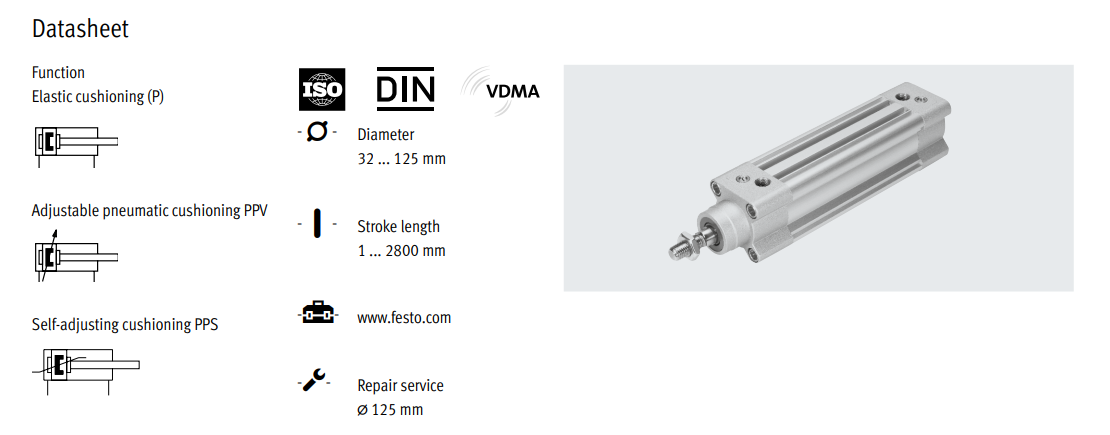

Datasheet

product standards based cylinder dsbc dsbc 40 50 80 100 125 160 200 ppva n3 dsbc 2123224-1

Feature of DSBC-32- -PPSA-N3 Part number: 1463252	Value
Stroke	1 mm... 2800 mm
Piston diameter	32 mm
Piston rod thread	M10x1.25
Cushioning	Self-adjusting pneumatic end-position cushioning
Mounting position	Optional
Piston-rod end	Male thread
Design	Piston Piston rod Profile barrel
Position detection	Via proximity switch
Variants	Piston rod at one end
Operating pressure	0.06 MPa... 1.2 MPa
Operating pressure	0.6 bar... 12 bar
Mode of operation	Double-acting
Operating medium	Compressed air to ISO 8573-1:2010
Note on operating and pilot medium	Lubricated operation possible - in which case lubricated operation will always be required
Corrosion resistance class CRC	2 - Moderate corrosion stress
LABS (PWIS) conformity	VDMA24364-B1/B2-L
Cleanroom class	Class 6 according to ISO 14644-1
Ambient temperature	-20 °C... 80 °C
Basic weight for 0 mm stroke	465 g
Additional weight per 10 mm stroke	27 g
Type of mounting	Either: Via female thread With accessories
Pneumatic connection	G1/8
