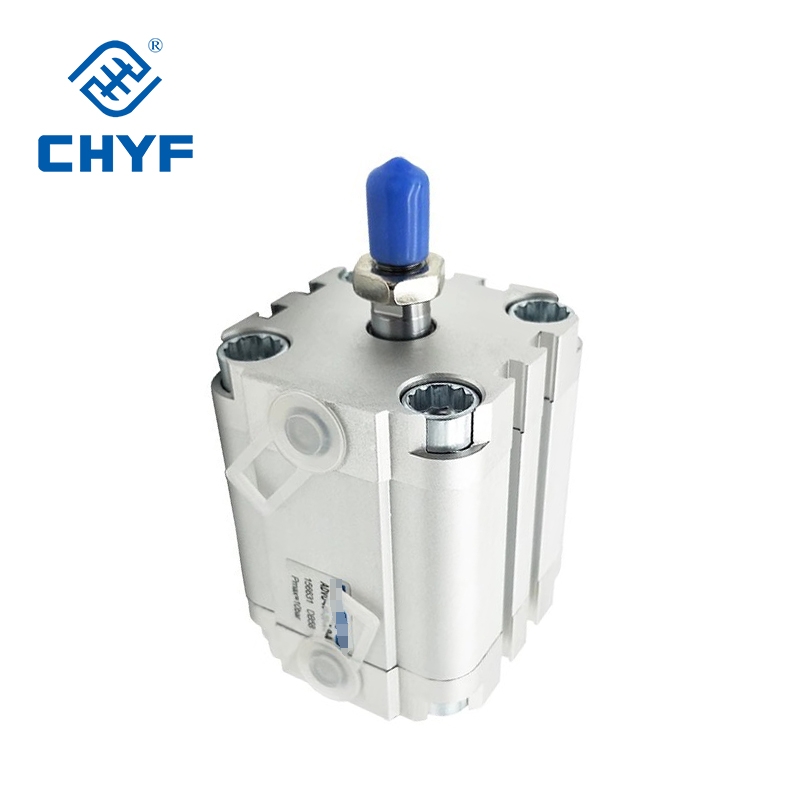

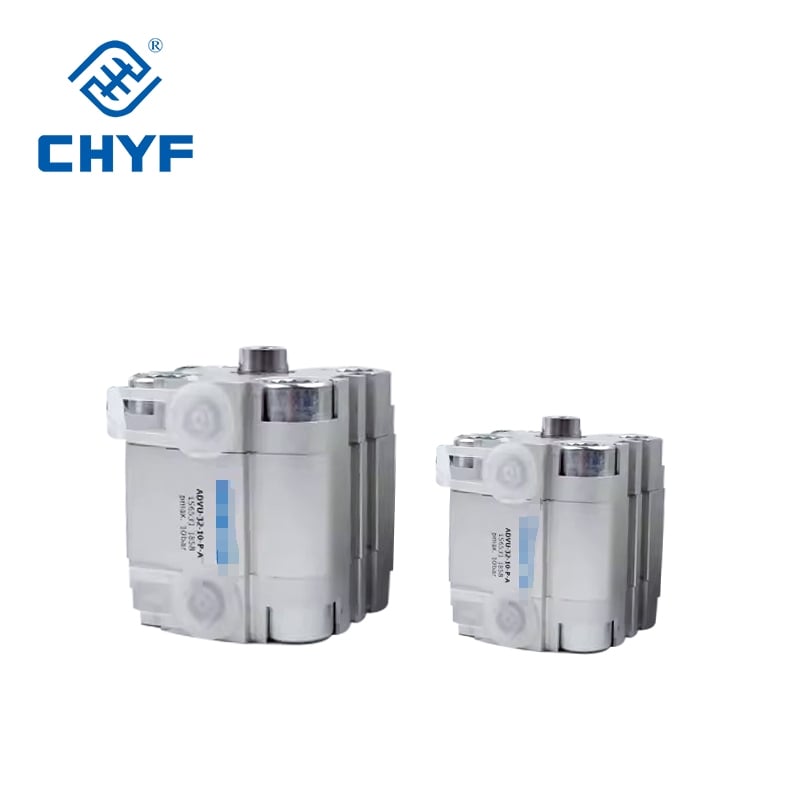

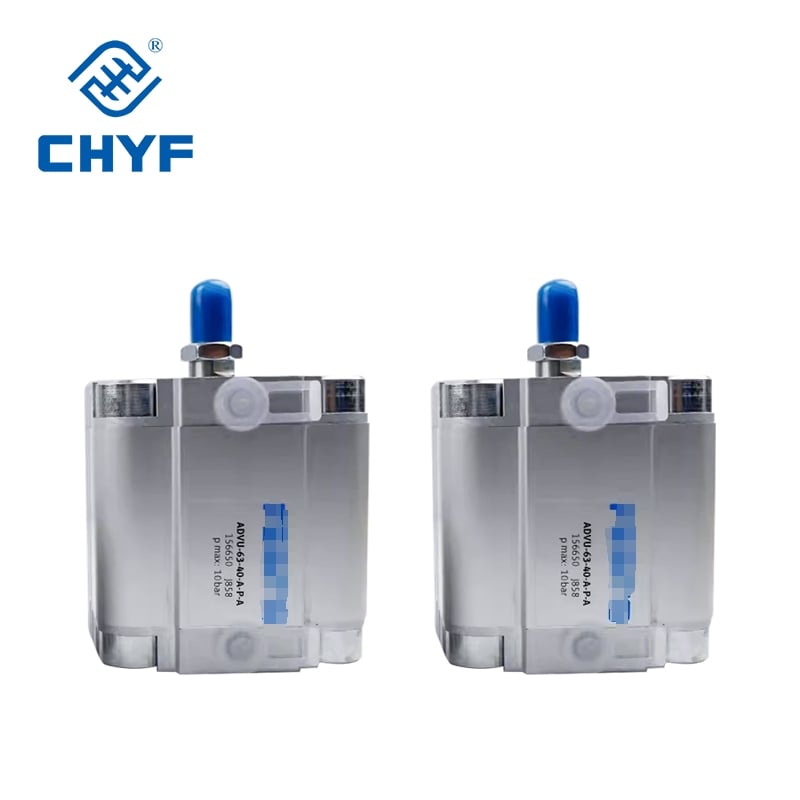

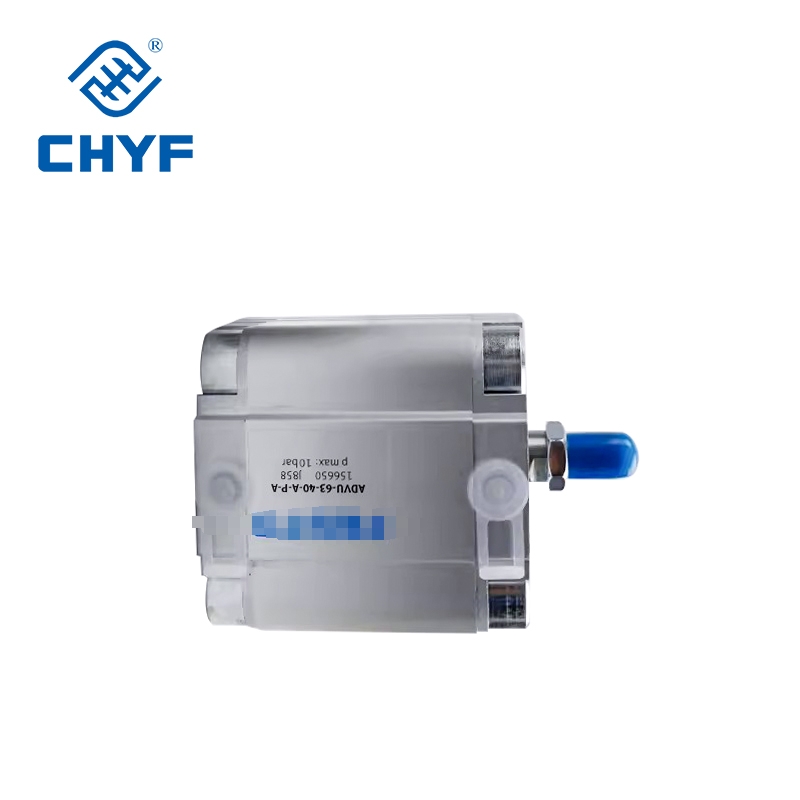

Compact Cylinder Air Cylinder ADVUL-50-50-P-A ADVU-50-50-P-A

Compact Cylinder Air Cylinder ADVUL-50-50-P-A ADVU-50-50-P-A

Overview
Recommended Products

CHYF

Introducing the CHYF Compact Cylinder Air Cylinder ADVUL-50-50-P-A and ADVU-50-50-P-A, the perfect solution for all your pneumatic system needs.

These compact cylinders are designed to provide high performance in a small package, making them ideal for applications where space is limited. The ADVUL-50-50-P-A and ADVU-50-50-P-A feature a sleek and lightweight design that allows for easy installation and operation.

With a bore size of 50mm and a stroke length of 50mm, these cylinders offer a reliable and efficient solution for a variety of industrial and automation applications. The ADVUL-50-50-P-A and ADVU-50-50-P-A are built to withstand tough working conditions, providing long-lasting durability and performance.

These cylinders are equipped with a built-in cushioning mechanism that ensures smooth and precise operation, reducing wear and tear on the CHYF cylinder and extending its lifespan. The ADVUL-50-50-P-A and ADVU-50-50-P-A also feature adjustable cushioning, allowing you to fine-tune the cylinder's performance to meet your specific requirements.

The CHYF Compact Cylinder Air Cylinder ADVUL-50-50-P-A and ADVU-50-50-P-A are versatile and highly adaptable, with a wide range of mounting options available. Whether you need a cylinder for vertical, horizontal, or side mounting, these cylinders offer flexibility and convenience.

In addition, these cylinders are designed for easy maintenance, with a simple and user-friendly design that allows for quick and hassle-free servicing. The ADVUL-50-50-P-A and ADVU-50-50-P-A are also compatible with a variety of accessories, allowing you to customize and optimize your pneumatic system to suit your specific needs.

The CHYF Compact Cylinder Air Cylinder ADVUL-50-50-P-A and ADVU-50-50-P-A offer high performance, reliability, and versatility in a compact and efficient package. Whether you need a cylinder for industrial automation, manufacturing, or any other application, these cylinders are sure to meet your needs and exceed your expectations. Upgrade to the CHYF Compact Cylinder Air Cylinder ADVUL-50-50-P-A and ADVU-50-50-P-A today for a reliable and efficient pneumatic solution.

product compact cylinder air cylinder advul 50 50 p a advu 50 50 p a-0

Short type code	ADVUL
Cushioning	Elastic cushioning rings/plates at both ends
Mounting position	optional
Design	Piston Piston rod Profile barrel

Compact cylinder, metric ADVU

Single- or double-acting cylinder with wide a variety of mounting options

* 50% less installation space than comparable standards-based cylinders to ISO 15552
* Wide range of variants for customised applications
* Piston rod with female or male thread
* For position sensing

Datasheet

General technical data

Piston

Pneumatic connection

G1/8

Piston rod end

(Female thread)

M10

Piston rod end

(Male thread)

M10x1.25

M12x1.25

M16x1.5

Operating medium

Compressed air to ISO 8573-1: 2010 [7: 4: 4]

Note on the operating/pilot medium

Lubricated operation possible (in which case lubricated operation will always be required)

Cushioning

Elastic cushioning rings/plates at both ends

Type of mounting

With through-hole

With female thread

With accessories

Position sensing

Via proximity switch

ADVU-50- -P-A Data sheet

1.2 bar

Mode of operation	Double-acting
Piston-rod end	Female thread
Operating pressure	0.12 MPa 1 MPa
Operating pressure	10 bar
Operating pressure	17.4 psi 145 psi
Ambient temperature	-20 °C 80 °C
Pneumatic connection	M5
Material collar screws	High-alloy stainless steel
Material cover	Wrought aluminium alloy
Material dynamic seals	NBR TPE-U(PU)

product compact cylinder air cylinder advul 50 50 p a advu 50 50 p a-1

product compact cylinder air cylinder advul 50 50 p a advu 50 50 p a-2

product compact cylinder air cylinder advul 50 50 p a advu 50 50 p a-3

product compact cylinder air cylinder advul 50 50 p a advu 50 50 p a-4

product compact cylinder air cylinder advul 50 50 p a advu 50 50 p a-5

product compact cylinder air cylinder advul 50 50 p a advu 50 50 p a-6

product compact cylinder air cylinder advul 50 50 p a advu 50 50 p a-7

product compact cylinder air cylinder advul 50 50 p a advu 50 50 p a-8
