Introducing, the Guided Cylinder DFM-12-16-10-20-25-30-32-40-50-80-100-P-A-GF-KF by CHYF. This innovative product is designed to provide precise and controlled linear motion in various industrial applications.



The Guided Cylinder DFM features a sturdy construction and a compact design, making it easy to install and integrate into existing systems. With its guided movement, this cylinder ensures smooth and reliable operation, reducing the risk of downtime and increasing productivity.



This versatile cylinder comes in a range of sizes, from 12mm to 100mm bore sizes, providing flexibility to meet different requirements. The DFM-12-16-10-20-25-30-32-40-50-80-100-P-A-GF-KF is suitable for a wide range of operating pressures, up to 1MPa, making it a versatile option for various industrial applications.



CHYF has designed this guided cylinder with precision and efficiency in mind. The use of high-quality materials ensures durability and longevity, even in harsh operating conditions. The cylinder is also equipped with a cushioning mechanism, ensuring smooth deceleration and reducing impact during operation.



In addition, the Guided Cylinder DFM features a piston rod made of hardened stainless steel, providing enhanced strength and corrosion resistance. The rod is also equipped with a high-performance seal to prevent leaks and ensure consistent performance.



The DFM-12-16-10-20-25-30-32-40-50-80-100-P-A-GF-KF by CHYF is designed for ease of maintenance, with simple disassembly and reassembly procedures. This makes it easy to replace parts and perform routine maintenance, minimizing downtime and reducing overall costs.



The Guided Cylinder DFM-12-16-10-20-25-30-32-40-50-80-100-P-A-GF-KF by CHYF is a reliable and efficient solution for a wide range of industrial applications. With its precision design, durability, and ease of maintenance, this cylinder is sure to enhance the performance of your systems and improve productivity


product guided cylinder dfm 12 16 10 20 25 30 32 40 50 80 100 p a gf kf dfm-0

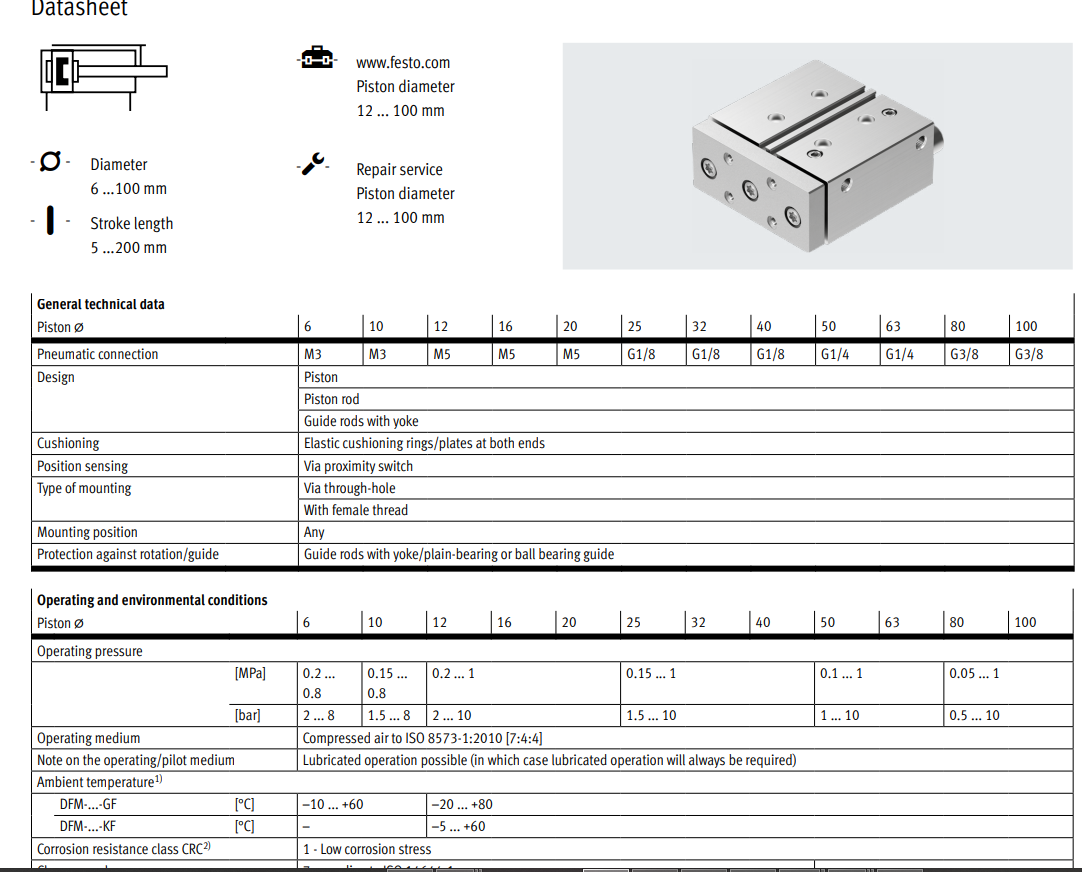

Datasheet
Bore size - mm
10
16
20
25
32



Acting type
Double acting
Fiuid
Air
Operating pressure
0.1~0.9Mpa
Proof pressure
1.35Mpa
Temperature
-5~70
Cushion type
Cushion control
Port size
M5*0.8
G1/8"
Body material
Aluminum alloy
Products Description
Guided drive, metric DFM
 With the guided drive DFM, you can count on precise guidance and great absorption of torques and lateral forces, coupled with a sturdy, compact design. It is suitable for clamping, lifting and stopping applications

* Drive and guide unit in a single housing
* High resistance to torques and lateral forces
* Plain or recirculating ball bearing guide
* Wide variety of mounting and attachment options
* Wide range of variants for customised applications
* Variants recommended for production systems for manufacturing lithium-ion batteries

At a glance

Drive and guide in a single housing

• Minimal space requirement
• Minimal mounting time
• Choice of supply ports
• Wide range of mounting options

Sturdy and precise

• High resistance to torsion
• Excellent rigidity
• Maintenance-free

High torque and transverse force absorption

With plain-bearing guide: high rigidity thanks to large-diameter guide rods and four plain-bearing bushes
• With recirculating ball bearing guide: for movements involving torque load
Wide choice of variants
product guided cylinder dfm 12 16 10 20 25 30 32 40 50 80 100 p a gf kf dfm-1

Guided drive DFM

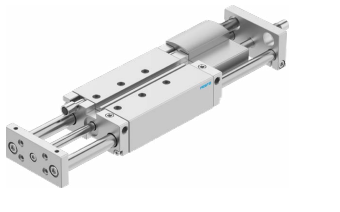

• Basic drive with strokes of up to 200 mm
product guided cylinder dfm 12 16 10 20 25 30 32 40 50 80 100 p a gf kf dfm-2

Guided drive DFM-B

• Drive with strokes of up to 400 mm
• With precision end-position adjustment
• With pneumatic cushioning, adjustable PPV
• With shock absorber, self-adjusting, progressive
Application examples
product guided cylinder dfm 12 16 10 20 25 30 32 40 50 80 100 p a gf kf dfm-3

Terminals

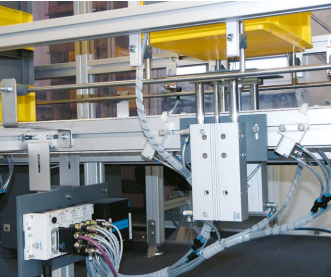

The guided drive is perfectly suited to clamping components for reliable further processing
product guided cylinder dfm 12 16 10 20 25 30 32 40 50 80 100 p a gf kf dfm-4

Lifting

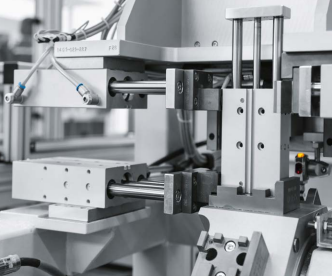

The powerful and dynamic guided drive transports and lifts loads of more than 200 kg with ease
product guided cylinder dfm 12 16 10 20 25 30 32 40 50 80 100 p a gf kf dfm-5

Stopping

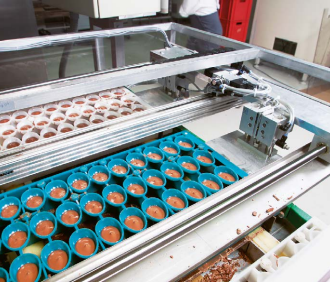

Loads of up to 150 kg are stopped reliably and safely, making the guided drive a resilient and sturdy stopper cylinder
product guided cylinder dfm 12 16 10 20 25 30 32 40 50 80 100 p a gf kf dfm-6

product guided cylinder dfm 12 16 10 20 25 30 32 40 50 80 100 p a gf kf dfm-7

product guided cylinder dfm 12 16 10 20 25 30 32 40 50 80 100 p a gf kf dfm-8
product guided cylinder dfm 12 16 10 20 25 30 32 40 50 80 100 p a gf kf dfm-9
product guided cylinder dfm 12 16 10 20 25 30 32 40 50 80 100 p a gf kf dfm-10
