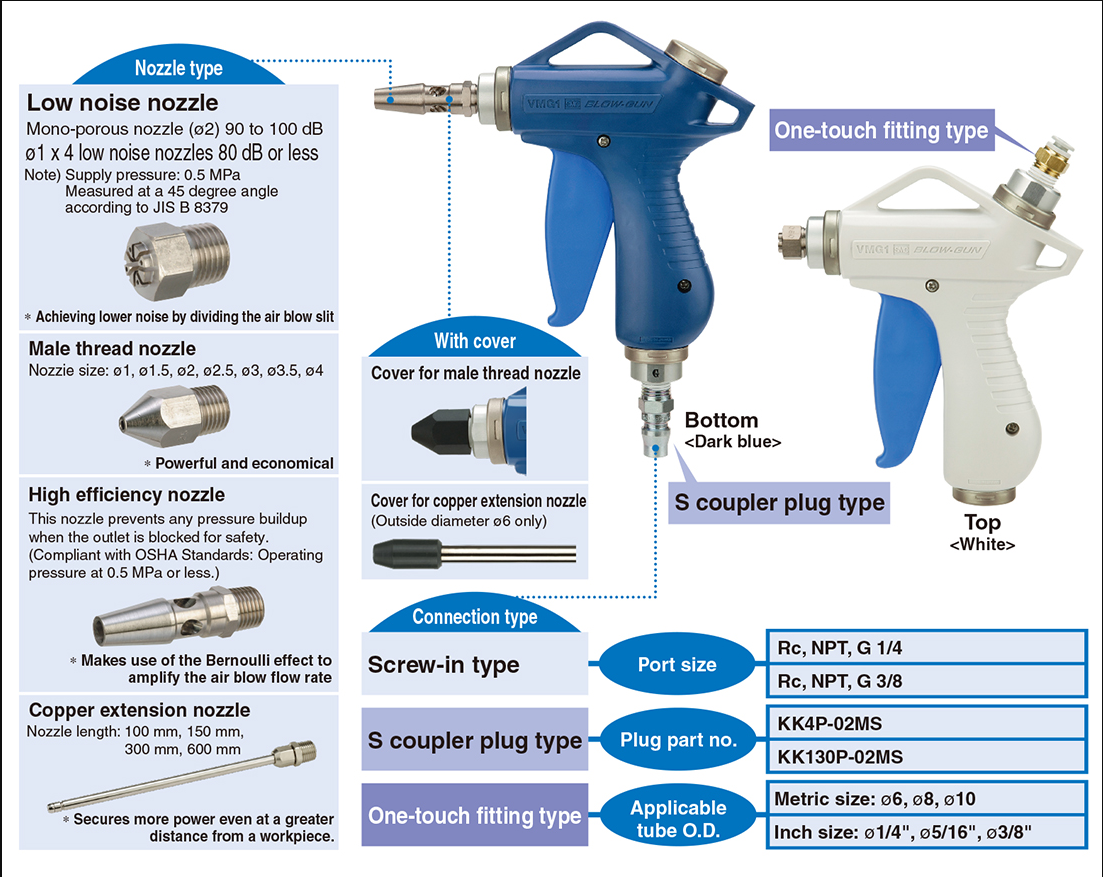

- A 20% reduction in power consumption can be achieved with the “Blow gun”+“S coupler"+“Coil tube." - -- Pressure loss: 1% or less (Nozzle size:02.5). Available nozzles:Male thread nozzle, High efficiency nozzle with male thread,
Low noise nozzle with male thread, Copper extension nozzle
With flow rate adjustment function -X54
- Overview
- Recommended Products
The Imported Air Gun Blowing Gun VMG11W-03/02 VMG11BU-02-03 by CHYF is a high-quality and versatile tool designed for a wide range of applications. With its sturdy construction and powerful air blowing capabilities, this air gun blowing gun is a must-have for any workshop or industrial setting.
Featuring a lightweight and ergonomic design, this air gun blowing gun is easy to handle and provides maximum comfort during extended use. The high-quality materials used in its construction ensure durability and reliability, making it a long-lasting addition to your tool collection.
The Imported Air Gun Blowing Gun VMG11W-03/02 VMG11BU-02-03 is designed for precision and efficiency, allowing you to easily clean and blow away dust, dirt, and debris from hard-to-reach areas. Whether you are working on machinery, vehicles, or electronics, this air gun blowing gun will help you get the job done quickly and efficiently.
With its adjustable air flow control, you can easily customize the air pressure to suit your specific needs. This feature makes it ideal for a variety of tasks, from delicate cleaning to more rugged applications.
In addition to its impressive performance, the Imported Air Gun Blowing Gun VMG11W-03/02 VMG11BU-02-03 by CHYF is also designed with safety in mind. The built-in safety trigger ensures that the air gun blowing gun will only operate when properly activated, reducing the risk of accidental injury.
Whether you are a professional Tradesperson or a DIY enthusiast, the Imported Air Gun Blowing Gun VMG11W-03/02 VMG11BU-02-03 by CHYF is a valuable tool that will help you get the job done quickly and efficiently. Add this high-quality air gun blowing gun to your tool collection today and experience the difference it can make in your work
Blow Gun VMG
Perfoemance

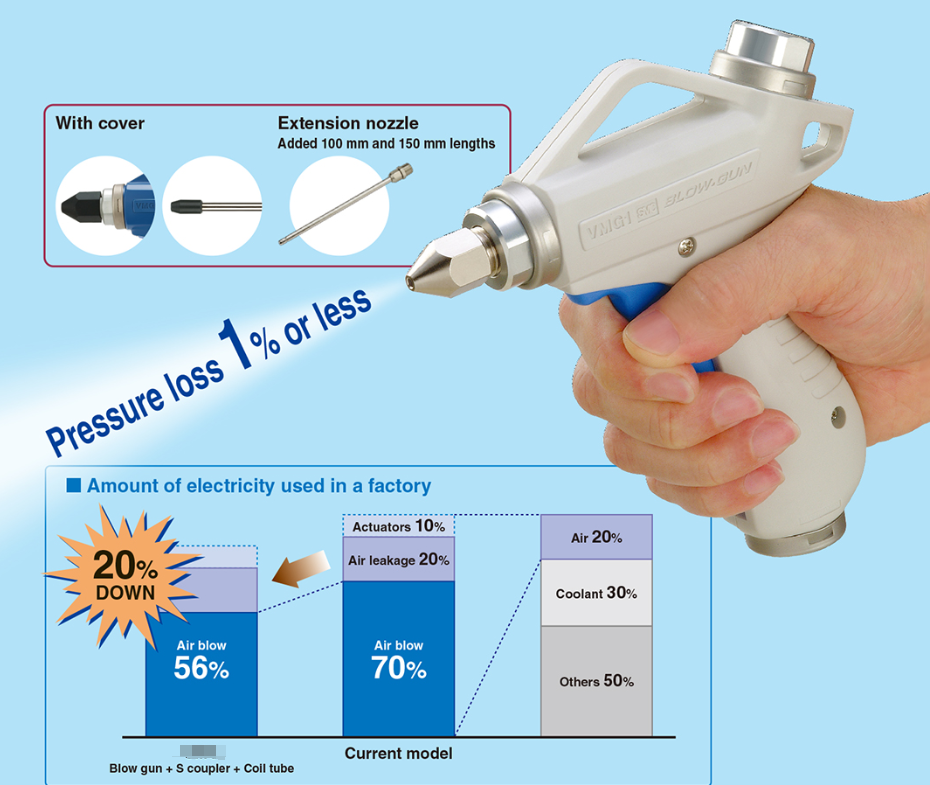

20% reduction in power consumption with the SMC "Blow gun" + "S coupler" + "Coil tube"
10% reduction with the "Blow gun (VMG)" only
The electricity used by compressors for air accounts for approximately 20% of that consumed by the entire factory. Also, 70% of the air consumed in the process is used for air blowing. Blow guns have minimal pressure loss compared with current models, so they can
achieve equivalent performance at lower pressures and with less volume of air consumption.
As a result, it is possible to achieve a 20% reduction in power consumption
Not affected by supply pressure, assured operability
When using this product even at a high pressure, the same gripping force is required as for a lower pressure
due to the unique balance-poppet construction
Use of shock-resistant resin
Shock-resistant resin is used in the main body. No cracks, breaks or other damage occurred in a drop test from a 2-meter height or in a human stomp test

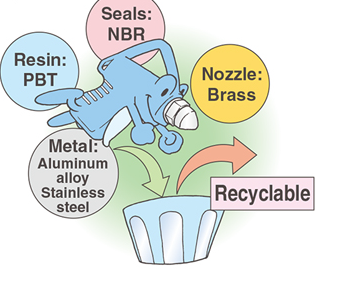

Components are separable. Environmentally friendly
Resin parts are inscribed with the name of the material. Additionally, all parts can be separated by material
Products Description

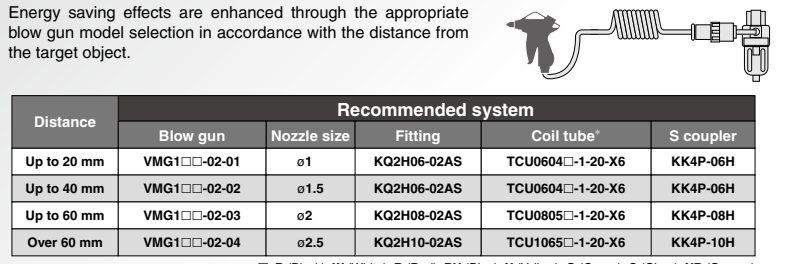

Blow Gun, Coil Tube and S Coupler Selection
Energy saving effects are enhanced through the appropriate blow gun model selection in accordance with the distance from the target object
Dimensions
Fluid |
Air |
Operating pressure range |
0 to 1.0 MPa |
Proof pressure |
1.5 MPa |
Ambient and fluid temperature |
–5 to 60°C - No freezing |
Flow rate characteristics - With nozzle removed |
C (dm3 /s·bar): 6.0, b: 0.25 - Effective area: 30 mm2 |
Port size |
Rc, NPT, G 1/4, 3/8 |
Piping entry |
Bottom / Top |
Nozzle port size |
Rc1/4 |
Weight - Main unit only |
165 g |
Operational force - when the valve is fully open |
7 N |
