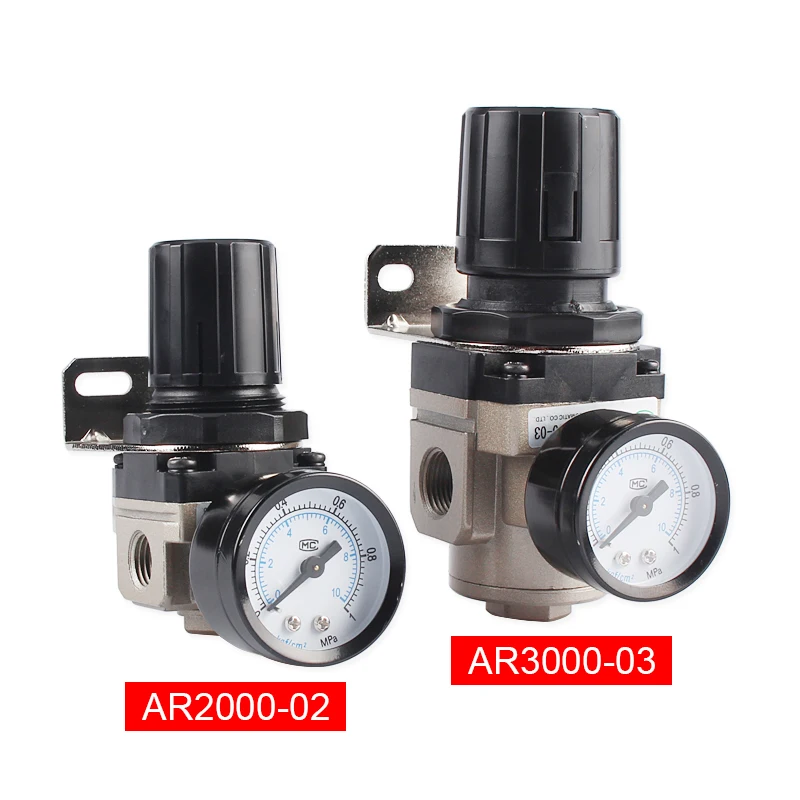

Pneumatic Air Pressure Regulator AR2000-02 AR3000-03 AR4000-04 Thread 1/4 Inch Oil-water Separator Pressure Reducing Valve
- Overview
- Recommended Products
The CHYF’s Pneumatic Air Pressure Regulator AR2000-02, AR3000-03, and AR4000-04 are high-quality tools designed to regulate air pressure in a variety of pneumatic systems. Whether you're working with air-powered tools, machinery, or equipment, these regulators are essential for maintaining consistent and efficient operation.
These regulators are built to last, with a durable construction that can withstand even the toughest working conditions. The thread size of 1/4 inch makes them compatible with a wide range of pneumatic fittings, making them versatile and easy to integrate into your existing setup.
One of the key features of these regulators is their oil-water separator, which helps keep your air supply clean and free from contaminants. This is crucial for maintaining the performance and longevity of your pneumatic equipment, as even small amounts of oil and water can cause damage and corrosion over time.
Another important function of these regulators is their pressure reducing valve, which allows you to adjust the air pressure to the exact level needed for your specific application. This precision control ensures that your equipment operates efficiently and safely, reducing the risk of damage and downtime.
Installation and operation of these regulators are simple and straightforward, thanks to their user-friendly design and clear instructions. Whether you're a seasoned professional or a DIY enthusiast, you'll find these regulators easy to use and maintain.
The CHYF’s Pneumatic Air Pressure Regulator AR2000-02, AR3000-03, and AR4000-04 are reliable, high-performance tools that will help you get the most out of your pneumatic systems. With their durable construction, versatile thread size, oil-water separator, and pressure reducing valve, these regulators are a must-have for anyone working with pneumatic equipment. Invest in the best quality regulators and ensure that your pneumatic systems run smoothly and efficiently every time
Item |
Air treatment regulator |
Condition |
New |
Warranty |
1 Year |
Applicable Industries |
Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Home Use, Retail, Construction works , Energy & Mining, Food & Beverage Shops |
After Warranty Service |
Video technical support, Online support |
Local Service Location |
None |
Showroom Location |
None |
Video outgoing-inspection |
Provided |
Machinery Test Report |
Not Available |
Marketing Type |
New Product 2020 |
Type |
Filter regulator |
Place of Origin |
China |
Brand Name |
CHYF |
Material |
Plastic Bag |
Model |
Specification |
Accessories |
|||||||||
Rated flow - L/min |
Port size - G |
Pressure gauge thread size |
Weight - kg |
Bracket - 2pcs |
|||||||
AR1000-M5 |
100 |
M5 |
G1/16" |
0.08 |
B120 |
||||||
AR2000-01 |
550 |
G1/8" |
G1/8" |
0.27 |
B220 |
||||||
AR200-02 |
G1/4" |
||||||||||
AR2500-02 |
2000 |
G1/4" |
G1/8" |
0.27 |
|||||||
AR2500-03 |
G3/8" |
||||||||||
AR3000-02 |
2500 |
G1/4" |
G1/8" |
0.41 |
B320 |
||||||
AR3000-03 |
G3/8" |
||||||||||
AR4000-03 |
6000 |
G3/8" |
G1/4" |
0.84 |
B420 |
||||||
AR4040-04 |
G1/2" |
||||||||||
AR4000-06 |
6000 |
G3/4" |
G1/4" |
0.94 |
|||||||
AR5000-06 |
8000 |
G3/4" |
G1/4" |
1.19 |
|||||||
AR5000-10 |
G1" |
||||||||||
Features:
3. Balanced design is adopted for the pressure adjustment mechanism
4. In addition to panel installation, the bracket is optional for installation
5. In addition to standard type, lower pressure type is optional - the highest adjustable pressure is 0.4MPa
