Introducing, the CHYF’s Solenoid Valve, a reliable and efficient solution for your industrial valve needs. The VSVA-B-P53ED-ZD-A2-1T1L 8031814 model is a standards-based valve with an individual plug, designed to meet the highest quality standards in the industry.
This solenoid valve is built to last, with a durable construction that can withstand tough working conditions. The individual plug design allows for precise control and adjustment, ensuring optimal performance in any application. Whether you're working with liquids, gases, or steam, this valve is up to the task.
The CHYF’s Solenoid Valve is easy to install and operate, with a simple design that makes maintenance a breeze. The valve is designed to provide reliable operation, with a long service life and minimal downtime. This means you can count on this valve to keep your operations running smoothly day in and day out.
Versatility is one of the key advantages of CHYF’s Solenoid Valve, as it is suitable for a wide range of applications. From controlling the flow of water in a plumbing system to regulating the pressure of air in a pneumatic system, this valve can handle it all. Its compatibility with different media and environments makes it a versatile and cost-effective solution for your valve needs.
When it comes to quality and performance, the CHYF’s Solenoid Valve delivers. It meets all relevant industry standards, ensuring that you can trust in its reliability and durability. With a reputation for excellence, CHYF is a brand you can rely on for all your valve needs.
The CHYF’s Solenoid Valve is a top-of-the-line solution for your industrial valve needs. With its standards-based design, individual plug feature, and reliable performance, this valve is sure to meet and exceed your expectations. Trust in the quality and reliability of CHYF, and choose the CHYF’s Solenoid Valve for your next project

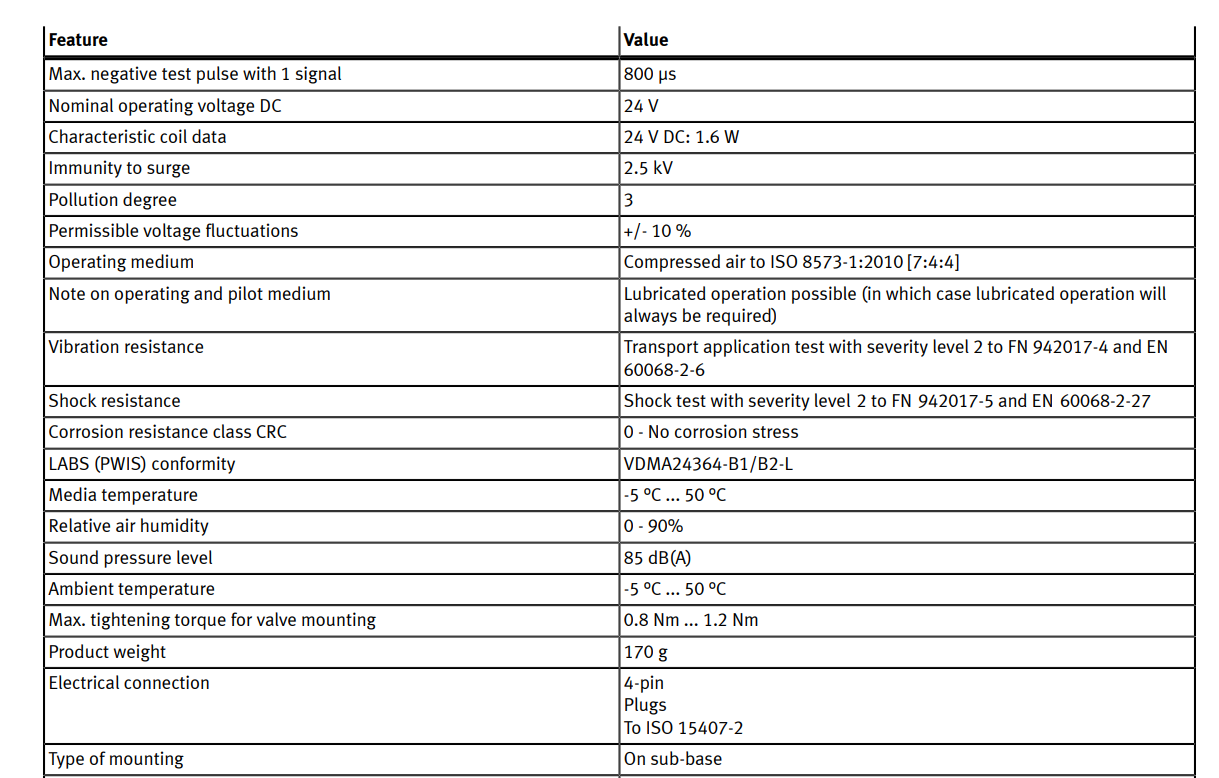

Standards-based valve with individual plug VSVA
* Corresponds to ISO 15407-1 and to ISO 15218 for pilot valve with interface
* Electrical connection via plug type C
* Robust metal housing
* Manifold assembly with mixed sizes possible
Feature |
Value |
Valve function |
5/3 exhausted |
Type of actuation |
Electric |
Construction width |
18 mm |
Standard nominal flow rate - standardised to DIN 1343 |
380 l/min |
pneumatic working port |
Sub-base size 18 mm to ISO 15407-1 G1/8 |
Operating voltage |
24V DC |
Operating pressure |
-0.09 MPa... 1 MPa / -0.9 bar... 10 bar |
Design |
Piston gate valve |
Type of reset |
Mechanical spring Electrical actuation
|
Nominal size |
5 mm |
Exhaust-air function |
With flow control option Via throttle plate
Via individual sub-base
|
