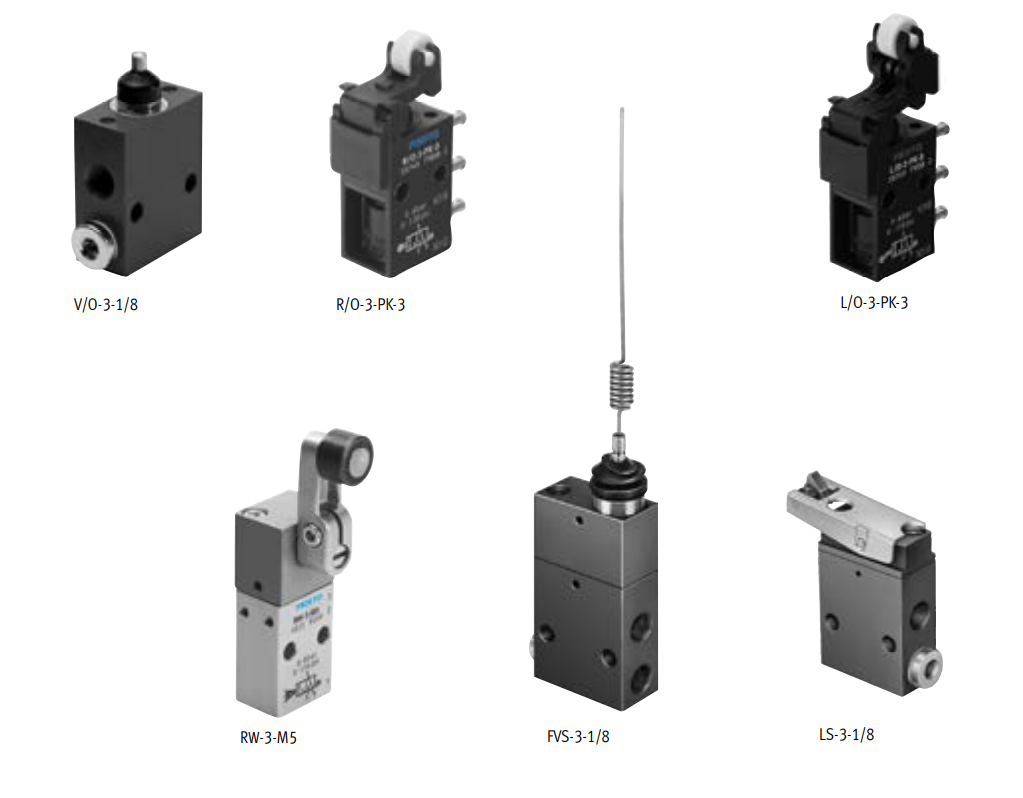

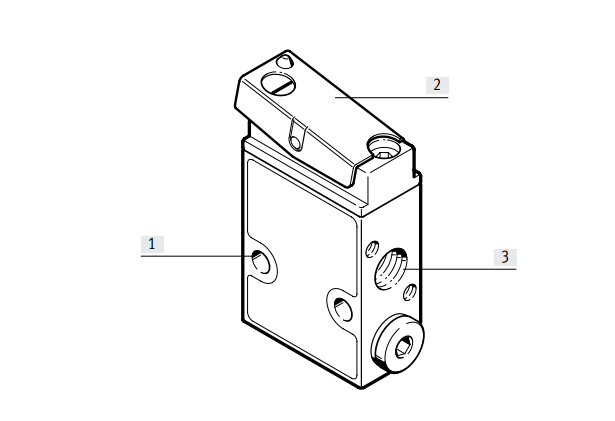

[2] Actuated via plunger, swivel lever, roller, toggle lever, whisker, roller plunger.
[3] Practical connection with threaded connection or connecting pieces
- Overview
- Recommended Products

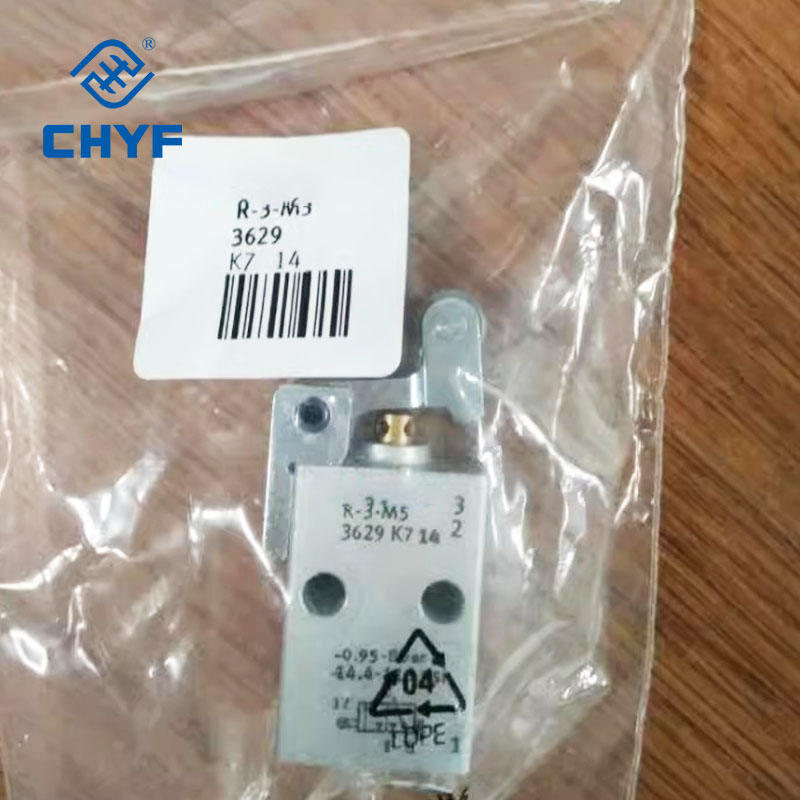

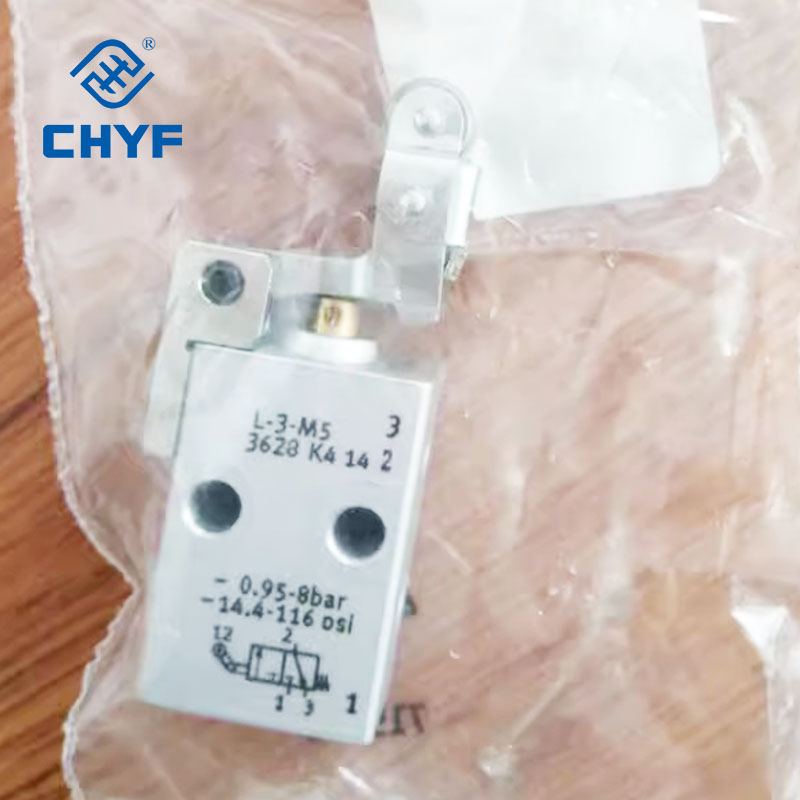

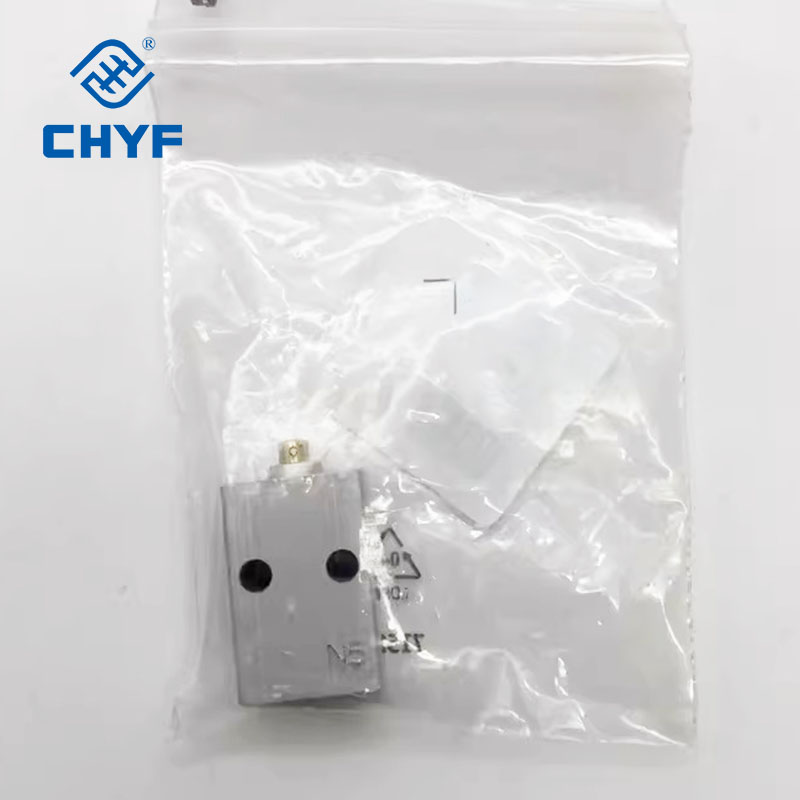

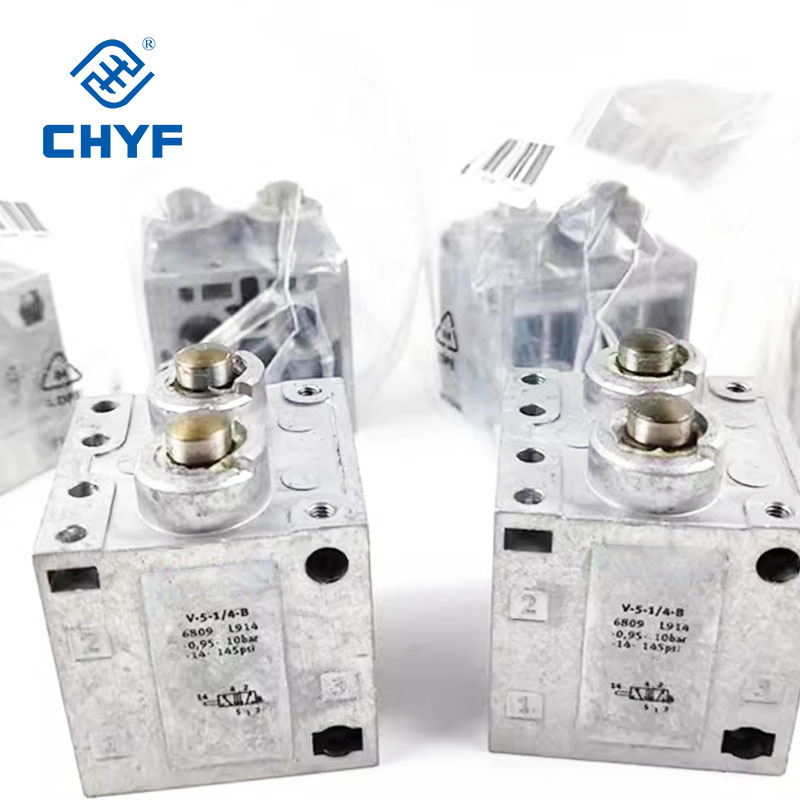

Introducing, the Stem Actuated Valve from CHYF, a top-of-the-line roller lever valve designed for precision and efficiency. The V-3-M5 3626 L-3-M5 3628 R-3-M5 3629 model is a versatile and reliable choice for a wide range of industrial applications.
This valve is built to last, with a sturdy construction and high-quality materials that ensure long-lasting performance. The stem actuation mechanism allows for easy operation, making it ideal for both manual and automated processes. The roller lever design provides smooth and precise control, allowing for quick and accurate adjustments.
With its compact size and lightweight design, the Stem Actuated Valve is easy to install and integrate into existing systems. The valve is compatible with a variety of different fittings and can be easily adapted to suit your specific needs. Whether you're working in a factory, laboratory, or workshop, this valve is sure to meet your requirements.
The V-3-M5 3626 L-3-M5 3628 R-3-M5 3629 model is designed for maximum efficiency, with a high flow rate and minimal energy consumption. This makes it a cost-effective solution for businesses looking to improve productivity and reduce operating costs. The valve is also designed to withstand high pressure and temperature conditions, ensuring reliable performance in even the harshest environments.
CHYF is known for its commitment to quality and innovation, and the Stem Actuated Valve is no exception. Each valve is rigorously tested to ensure compliance with industry standards and regulations, guaranteeing safety and reliability. With CHYF, you can trust that you're getting a top-quality product that will deliver consistent performance for years to come.
The Stem Actuated Valve from CHYF is a reliable and efficient solution for all your industrial valve needs. Its durable construction, easy operation, and high performance make it the perfect choice for a wide range of applications. Trust CHYF to provide you with the best in quality and reliability – choose the Stem Actuated Valve for your business today
Features
Innovative
• Small and compact for a wide range of pneumatic applications.
• Wide range of selectable valve functions; 3/2-way, 4/2-way and
5/2-way functions
5/2-way functions
• With flow rates of up to 600 l/min, the valves offer outstanding pneumatic performance for a wide range of applications
• Lightweight
• Minimal actuating forces
Versatile
• Flexibility of the pneumatic working ports provides a practical solution to different requirements
• Round silencer for ducted exhaust air
• Suitable for vacuum in some cases
• Reverse operation possible in some cases
• Actuation: direct and piloted
• Pressure range from vacuum to 10 bar possible
• Design:
– Stem actuated valve -
Swivel lever valve
– Roller valve, toggle lever valve
– Roller lever valve with idle return – Whisker valve
– Roller actuated valve
Operational safety
• Durable with proven piston slide and piston poppet valves
• Sturdy thanks to metal or plastic housing and connecting thread or
connector
connector
[1] Fast mounting: screwed directly via through-hole, front panel mounting possible in some cases。
Mechanically actuated valves---– Pneumatic components
Mechanically actuated valves are often used as "signal valves", and return a pneumatic signal to the controller. This signal, e. g. "end position reached", is transmitted via a stem or roller actuated valve. This application sounds simple, but it is commonly used in smaller machines and in conveyor systems, e. g. to control simple clamping and locking processes in semi-automatic assembly and manufacturing. A modern design with a metal housing combines durability and functionality. Benefits of mechanically actuated valves:
• No electronic controller required
• No programming required
• Easy to set up and connect
• Can be controlled and measured using sensors
Datasheet

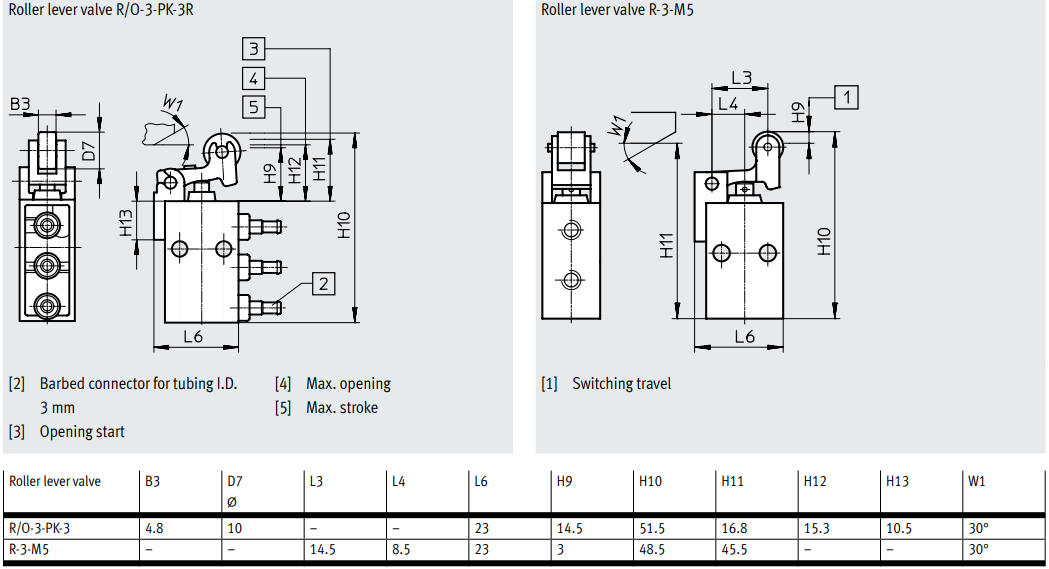

Feature of R-3-M5 Part number: 3629 |
Value |
Valve function |
3/2-way, closed, monostable |
Type of actuation |
Mechanical |
Standard nominal flow rate - standardised to DIN 1343 |
80 l/min |
pneumatic working port |
M5 |
Operating pressure |
-0.95 bar... 8 bar |
Design |
Poppet seat |
Nominal size |
2 mm |
Type of piloting |
Direct |
Operating medium |
Compressed air |
Note on operating and pilot medium |
Lubricated operation possible - in which case lubricated operation will always be required |
LABS (PWIS) conformity |
VDMA24364-B1/B2-L |
Ambient temperature |
-10 °C... 60 °C |
Actuating force |
16.5 N |
Product weight |
40 g |
Type of mounting |
With through-hole |
Pneumatic connection, port 1 |
M5 |
Pneumatic connection, port 2 |
M5 |
Material seals |
NBR |
Material housing |
Die-cast zinc |
FAQ
Q: Are you trading company or manufacturer
A: We are factory with more than 20 years experience in this field
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity
