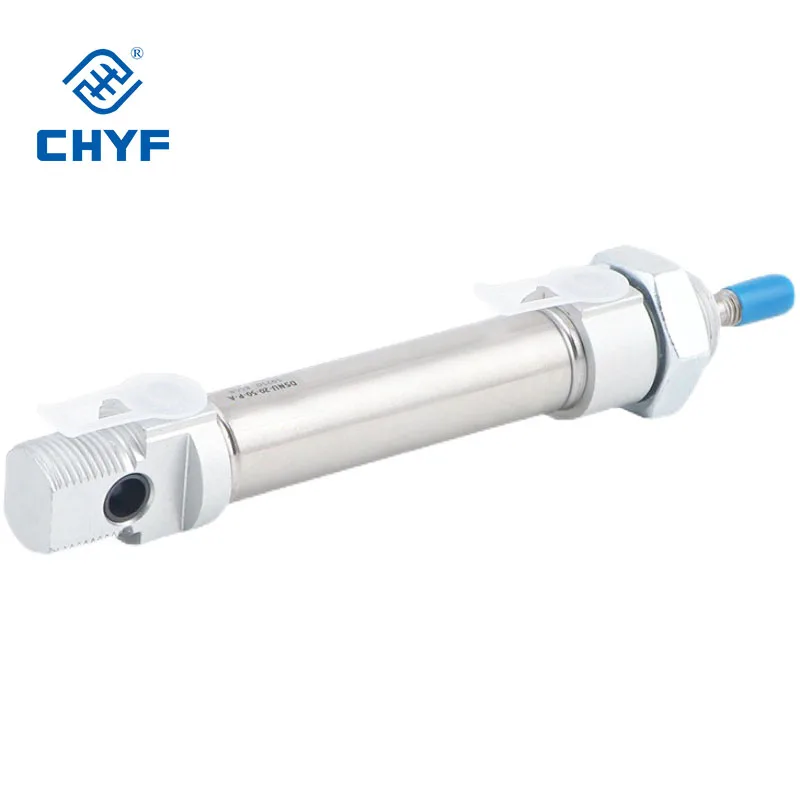

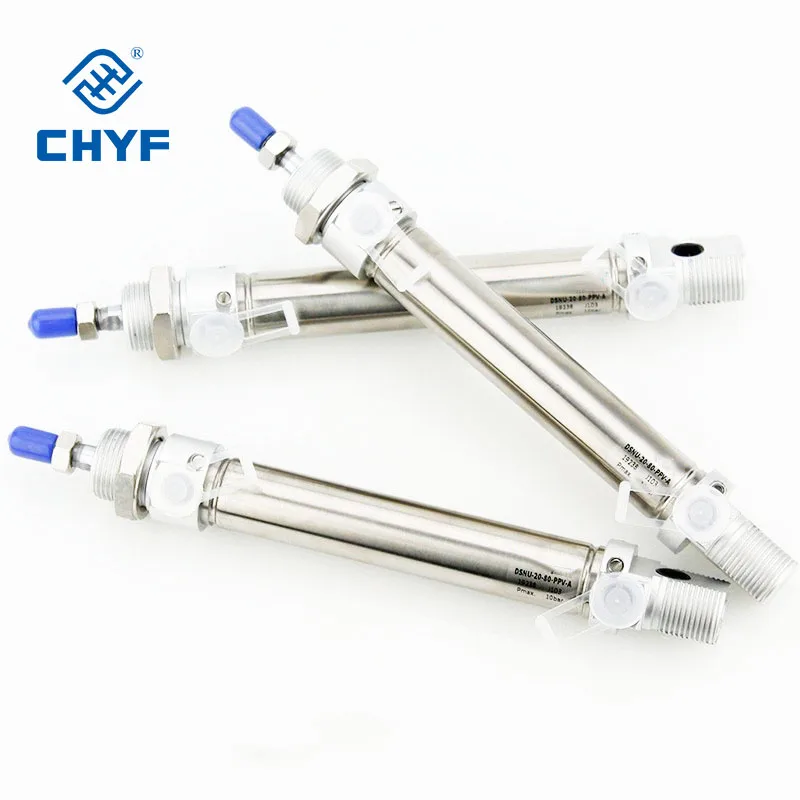

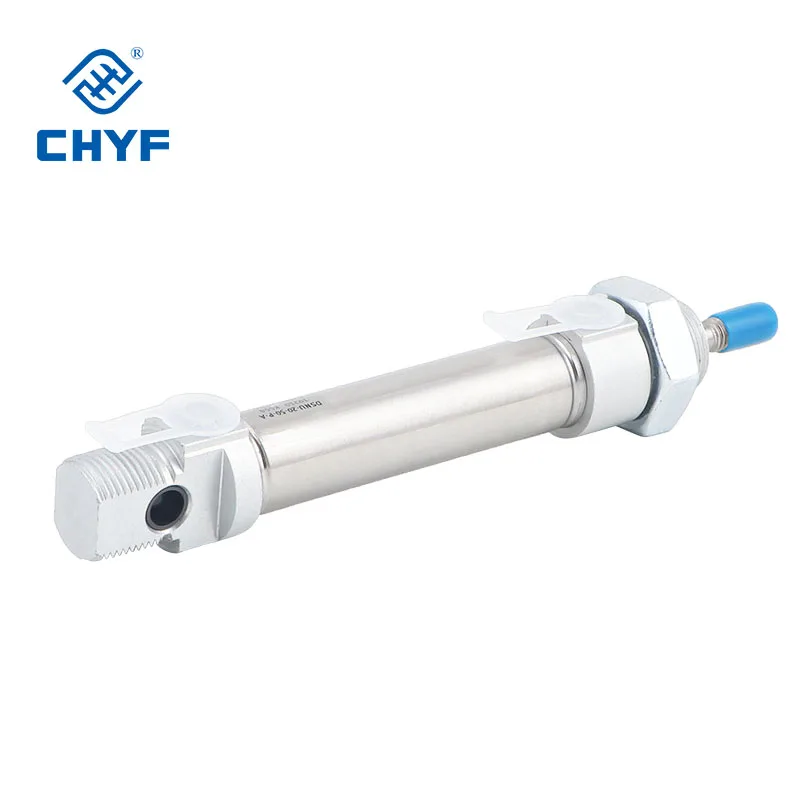

Introducing, the CHYF’s Compact Actuator DSNU-25-400-PPV-A Lightweight Pneumatic Cylinder for Automation. This high-quality pneumatic cylinder is designed to provide efficient and reliable performance in a wide range of industrial applications.
With a compact design and lightweight construction, this pneumatic cylinder is easy to install and integrate into existing automation systems. The DSNU-25-400-PPV-A model features a 25mm bore diameter and 400mm stroke length, making it ideal for medium-duty applications where precise motion control is required.
The CHYF’s Compact Actuator is made from durable materials that can withstand the rigors of continuous operation in industrial environments. The piston rod is made from hardened steel for improved strength and wear resistance, while the anodized aluminum cylinder body ensures corrosion resistance and long-lasting performance.
This pneumatic cylinder is equipped with PPV cushioning technology, which allows for smooth and precise deceleration at the end of the stroke. This not only helps to protect the cylinder from damage but also improves overall system performance by reducing vibration and noise.
The CHYF’s Compact Actuator DSNU-25-400-PPV-A is designed for easy maintenance, with seals and cushioning elements that can be replaced without disassembling the cylinder. This reduces downtime and ensures that your automation system stays up and running smoothly.
Whether you need to move objects, position components, or perform precise tasks in your automation system, the CHYF Compact Actuator is up to the challenge. Its compact size and lightweight design make it easy to incorporate into a wide range of applications, from packaging and material handling to assembly and machining.
The CHYF’s Compact Actuator DSNU-25-400-PPV-A Lightweight Pneumatic Cylinder for Automation is a reliable and versatile solution for your industrial automation needs. With its high-quality construction, advanced cushioning technology, and easy maintenance features, this pneumatic cylinder will help optimize the performance of your automation system and improve productivity in your facility
Specification |
|
Material |
Carbonization steel, aluminium alloy, brass, magnetic plastic |
Motion pattern |
Double action |
Working medium |
Filter compressed air, lubricate or didn't lubricate |
Operating woltage range |
0.06~1.2MPa |
Ensured pressure resistance |
1.35MPa |
Operating temperature range |
-20~+80℃ |
Operating speed range |
Double end adjustable buffer |
Buffer stroke |
20mm~45mm |
Joint pipe bore |
G1/8, G1/4, G3/8, G1/2 |
FAQ
A: We are factory with more than 20 years experience in this field
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity
