Linear drive, metric DGO

Positioning drive with magnetic force transmission, without a mechanical connection. The piston chamber and rotor are hermetically sealed.
* Magnetic power transmission
* Pressure-tight and zero leakage
* Dirt-proof and dust-proof
* Sustainable operation thanks to leakage reduction at sealing points

At a glance

Double-acting

• Magnetically coupled without mechanical connections

• Piston chamber and slide are hermetically sealed

Pressure-tight and leak-free system

• Dirt-proof and dust-proof

• Space-saving installation for long strokes

For contactless position sensing

• With adjustable end-position cushioning at both ends (not for piston diameter of 12 mm)

product dgo 25 1300 ppv a b linear drive unit cylinder dgo dgo 25-1

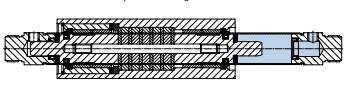

The technology in detail

Motion is transmitted via the force locking of the magnetic coupling to the moveable outer slide.

This means that there is no advancing piston rod and the installation space required is less than for conventional pneumatic drives.

The cylinder chamber is hermetically sealed from the outer slide as there is no mechanical connection. This prevents leakage losses.

product dgo 25 1300 ppv a b linear drive unit cylinder dgo dgo 25-2

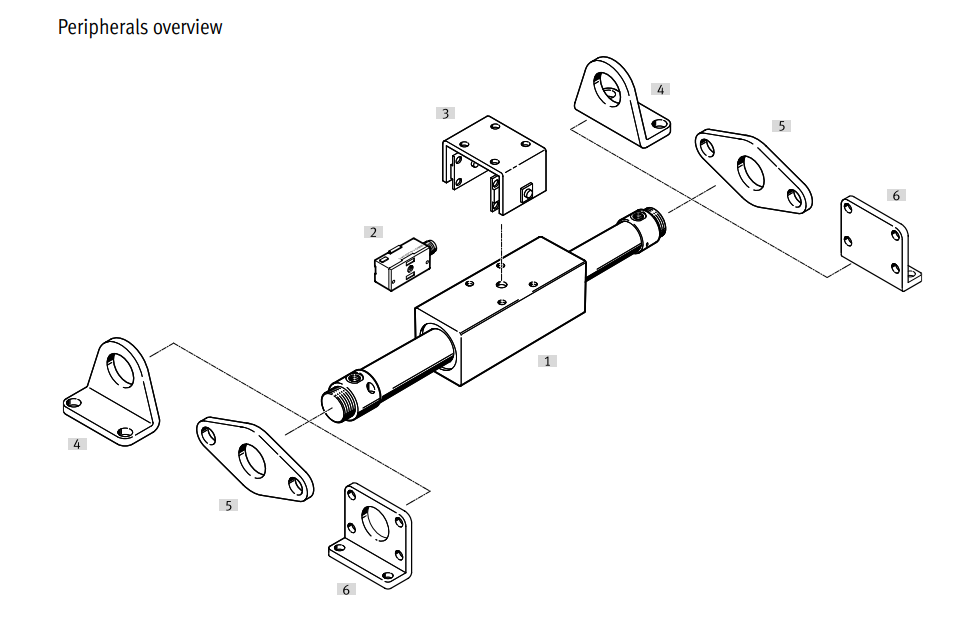

[1] Linear drives DGO	Double-acting
[2] Proximity switch SMEO-/SMTO-/SMPO-1	For contactless position sensing, mounted externally via a mounting kit
[3] Moment compensator FKG	To compensate for misalignments and eliminate tilting moments
[4] Foot mounting HBN	For bearing or end cap with piston diameter 12 25 mm
[5] Flange mounting FBN	For bearing or end cap with piston diameter 12 25 mm
[6] Flange mounting FBN	For bearing or end cap with piston diameter 32 40 mm
One-way flow control valve GRLA	For regulating speed
Push-in fitting QS	For connecting tubing with standard O. D

Datasheet

Piston	12	16	20	25	32	40
Stroke [mm]	1200	10 2500	10 3000	10 3500			10 4000
Pneumatic connection	M5			G1/8				G1/4
Operating medium	Compressed air
Note on the operating/pilot medium	Lubricated operation possible (in which case lubricated operation will always be required)
Design	Rodless
Driver principle	Magnetically coupled
Cushioning	Elastic cushioning rings/plates at both ends	Pneumatic cushioning adjustable at both ends
Cushioning length [mm]	-	14	17	19	20	23
Position sensing	Via proximity switch

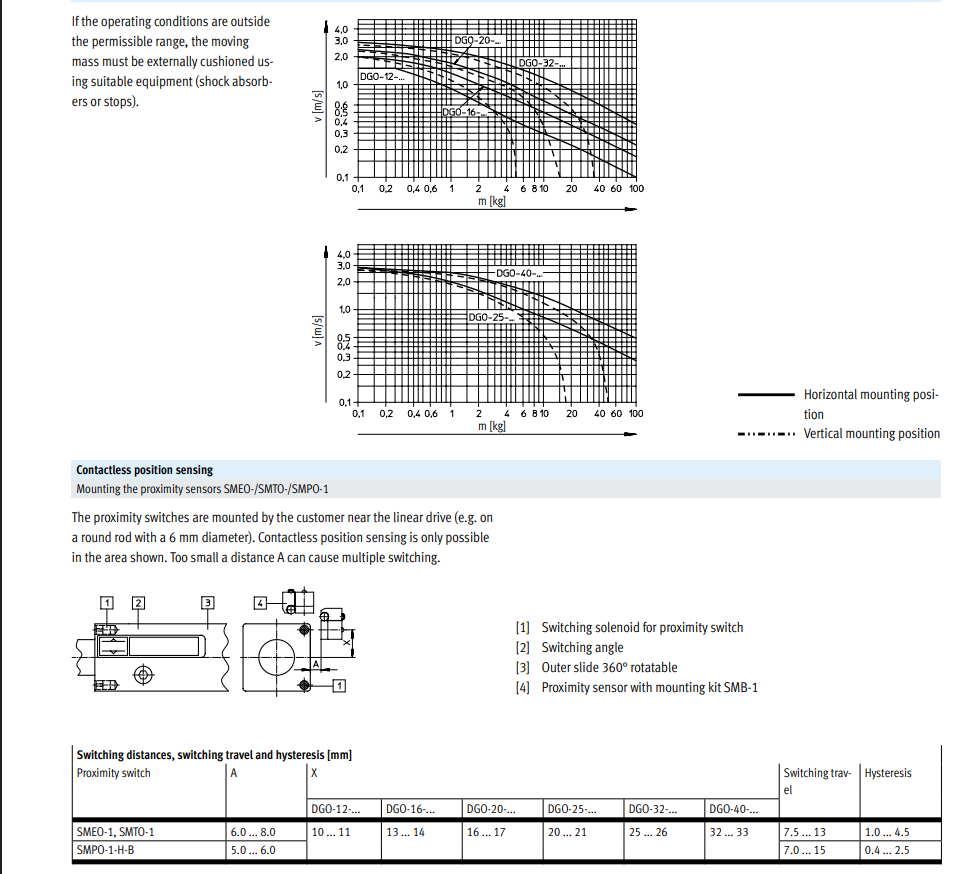

product dgo 25 1300 ppv a b linear drive unit cylinder dgo dgo 25-3

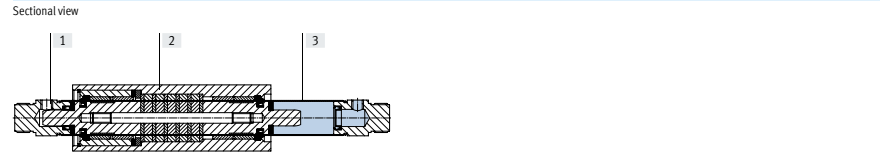

[1] End cap	Anodised aluminium
[2]_ Outer slide	Anodised aluminium
[3] Cylinder barrel	High-alloy steel
Seals	NBR, polyurethane
LABS (PWIS) conformity	VDMA24364-B2-L

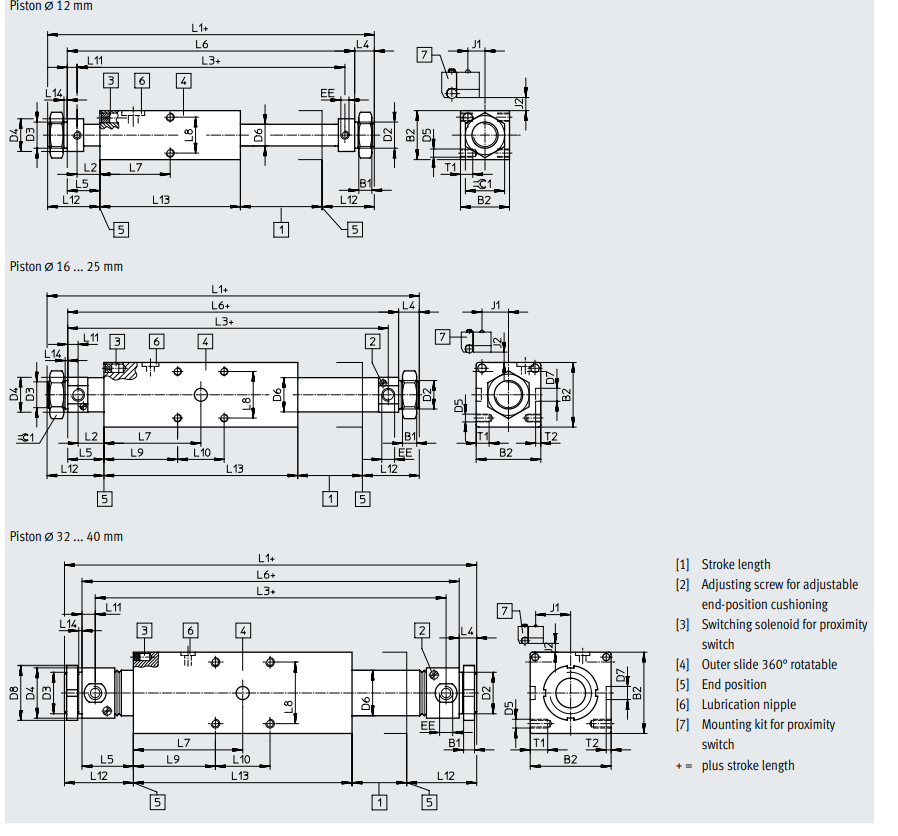

product dgo 25 1300 ppv a b linear drive unit cylinder dgo dgo 25-4
